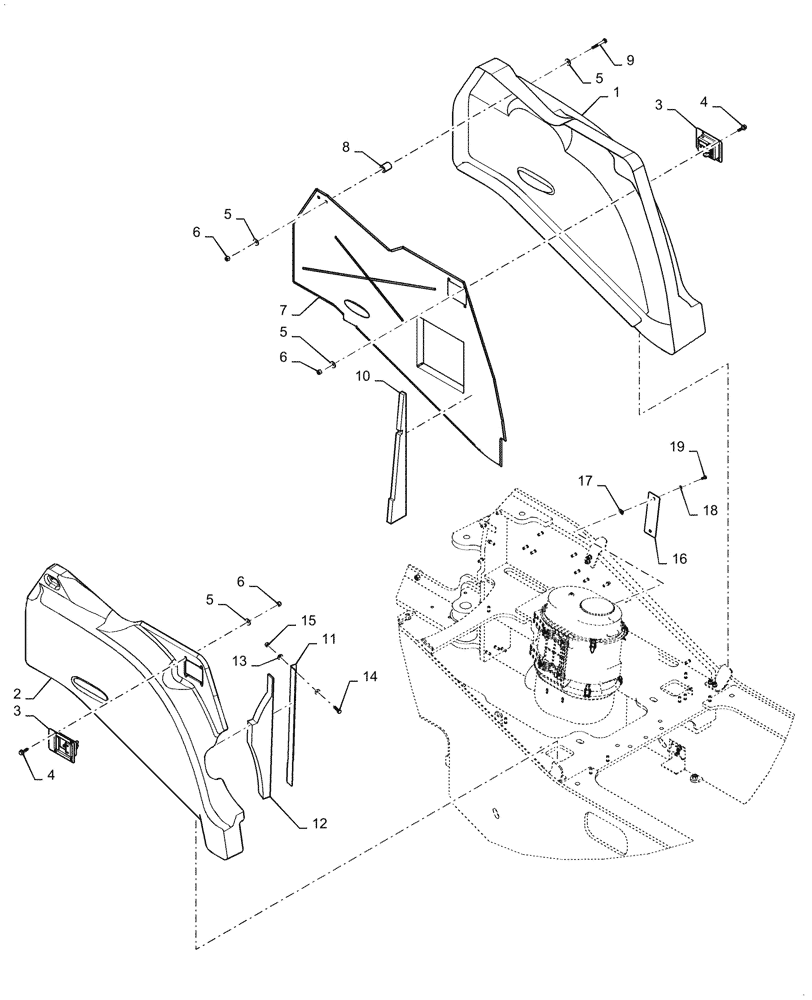

Запчасти Case 1021F (90.119.01) - HOOD PANEL WHEEL WELL STANDARD (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84374327

PANEL

Wheel Well, RH

1шт.

2

84374331

PANEL

Wheel Well, LH

1шт.

3

R56221

LATCH

2шт.

4

844-6020

BOLT,Hvy Hex, M6 x 20mm, Cl 8.8

8шт.

5

895-25006

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

12шт.

6

832-10406

NUT,M6 x 1, Cl 8

10шт.

7

84385849

SHIELD

Heat

1шт.

8

84382825

SPACER,9.5mm ID x 19mm OD x 23mm L

2шт.

9

827-6045

BOLT,Hex, M6 x 45mm, Cl 10.9

2шт.

10

84402114

FOAM

Wheel Well

1шт.

11

47359784

BRACKET

Firewall

1шт.

12

47359790

FOAM

Firewall

1шт.

13

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

8шт.

14

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

4шт.

15

832-10410

NUT,M10 x 1.5, Cl 8

4шт.

16

84411981

RETAINING PLATE

1шт.

17

84346910

SPRING NUT,M8

2шт.

18

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

19

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

2шт.
