Запчасти Case 1021F (90.118.01) - STEPS, LEFT SIDE (90) - PLATFORM, CAB, BODYWORK AND DECALS

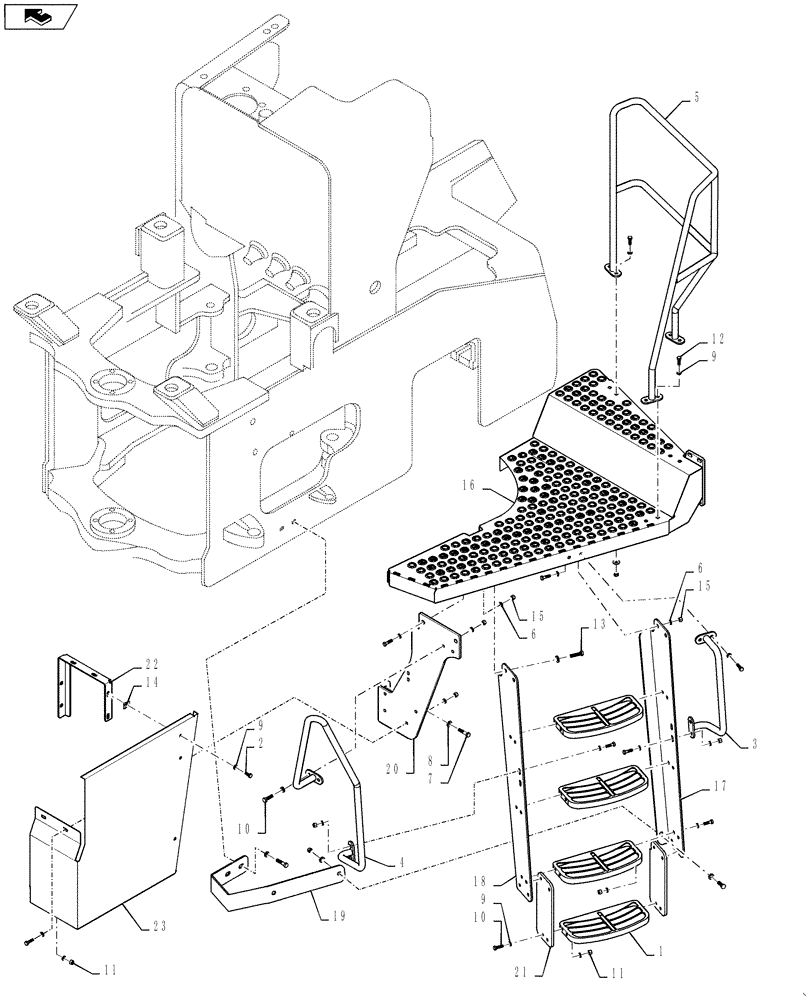

Схема запчастей Case 1021F - (90.118.01) - STEPS, LEFT SIDE (90) - PLATFORM, CAB, BODYWORK AND DECALS
8
5
11
1
3
10
14
11
12
9
21
17
10
15
6
20
7
13
19
18
2
23
16
home
6
4
9
9
15
22

Артикул

Название

Примечание

Количество

1

87434472

STEP

Left

4шт.

2

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

2шт.

3

84374026

GRAB RAIL

With Right Hand Grab

1шт.

4

84285401

GRAB RAIL

LH Front

1шт.

5

84374022

HANDRAIL

LH Platform

8шт.

6

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

6шт.

7

827-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

16шт.

8

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

72шт.

9

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

28шт.

10

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

33шт.

11

832-10410

NUT,M10 x 1.5, Cl 8

8шт.

12

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

8шт.

13

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

10шт.

14

87493302

SPRING NUT,M10

M10x1.5

2шт.

15

832-10412

NUT,M12 x 1.75, Cl 8

1шт.

16

84374011

PLATFORM

Left

1шт.

17

84374033

SUPPORT

LH Rear

1шт.

18

84374056

SUPPORT

LH Front

1шт.

19

84346083

BRACKET

LH Step Brace

1шт.

20

84374059

BRACKET

Platform LH Front

1шт.

21

84473299

STRAP

Lower Entry

2шт.

22

84399556

BRACKET

Accumulator Access

1шт.

23

84399549

ACCESS COVER

Accumulator

1шт.

Выбрано товаров: 23
