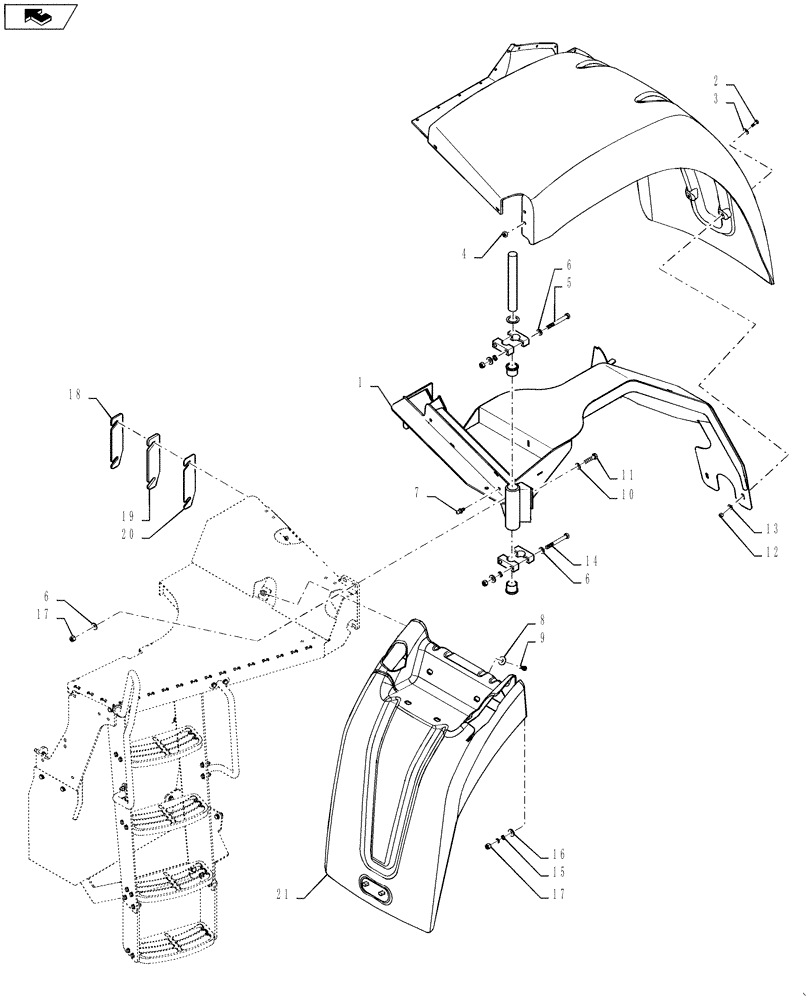

Запчасти Case 1021F (90.116.04[01]) - REAR FENDER RIGHT SIDE WIDE (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

87552920

FENDER

Right Hand

1шт.

2

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

2шт.

3

895-25008

WASHER,9mm ID x 24mm OD x 2mm Thk

2шт.

4

404882A1

SPRING NUT,M6

2шт.

5

827-12090

BOLT,Hex, M12 x 1.75 x 90mm, Cl 10.9

2шт.

6

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

4шт.

7

86013811

STUD

2шт.

8

895-25012

WASHER,M12 x 37 x 3

6шт.

9

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

4шт.

10

895-25006

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

2шт.

11

627-6025

BOLT,Hex, M6 x 1 x 25mm, Cl 10.9, Full Thd

2шт.

12

832-10408

NUT,M8 x 1.25, Cl 8.8

2шт.

13

896-15008

WASHER,9mm ID x 21mm OD x 2.5mm Thk

2шт.

14

827-12100

BOLT,Hex, M12 x 1.75 x 100mm, Cl 10.9

2шт.

15

14499601

WASHER,13mm ID x 20mm OD x 2.5mm Thk

4шт.

16

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

2шт.

17

829-1412

NUT,M12, Cl 10.9

2шт.

18

84419572

SHIM

1шт.

19

84419571

SHIM

1шт.

20

84419570

SHIM

1шт.

21

84370337

FENDER

1шт.
