Запчасти Case 1021F (90.108.01) - DECALS - COMMON TO MODEL (90) - PLATFORM, CAB, BODYWORK AND DECALS

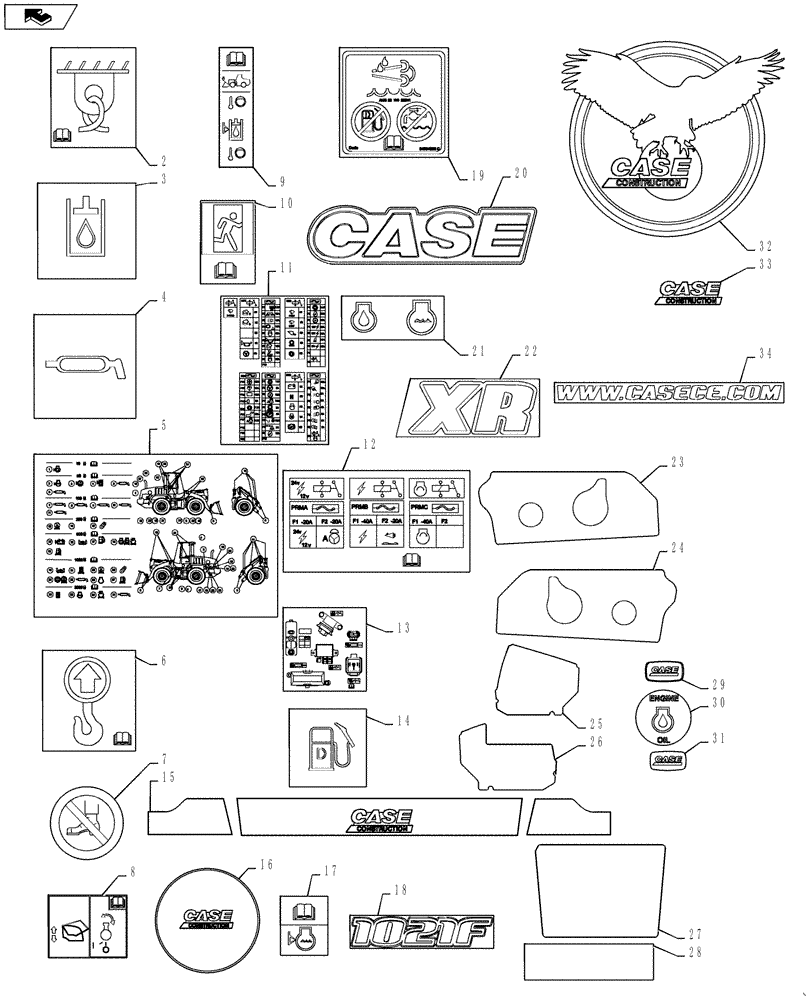

Схема запчастей Case 1021F - (90.108.01) - DECALS - COMMON TO MODEL (90) - PLATFORM, CAB, BODYWORK AND DECALS
15
26
18
5
33
2
13
23
10
24
25
6
4
21
32
3
27
19
8
11
14
20
9
16
22
home
34
7
28
12
30
29
31
17

Артикул

Название

Примечание

Количество

1

NSS

NOT SOLD SEPARAT

1021F, Serial Range: Common-Model

1шт.

2

84409663

DECAL

Tie Down

8шт.

3

395895A1

DECAL

Hydraulic Oil

2шт.

4

187864A1

DECAL

Grease Lube Point

4шт.

5

84498353

DECAL

Maintenance Chart

1шт.

6

84409662

DECAL

Lift

4шт.

7

E134402

DECAL

No Step

1шт.

8

84424913

DECAL

Hood SW/Battery Disconnect

1шт.

9

386741A2

DECAL

Hydraulic Fluid Temp Level

1шт.

10

329051A1

DECAL

Emergency Exit

1шт.

11

84490000

DECAL

Fuse

1шт.

12

84494278

DECAL

Fuse

1шт.

13

84546680

DECAL

Fuse and Relay

1шт.

14

139879A1

DECAL

Diesel Fuel

1шт.

15

84489975

DECAL

Cab Visor Fritting

1шт.

16

84489984

DECAL

Case 35mm Steering Wheel, Serial Range: -NDF221147

1шт.

16

84528567

DECAL

, Start Serial: NDF221148

1шт.

17

87585326

DECAL

Coolant Level

1шт.

18

84489973

DECAL

Model Number

2шт.

19

84284896

DECAL,DEF TANK identification label

DEF

1шт.

20

84495419

DECAL,834mm x 212mm H

Case Impact Logo 212mm

2шт.

21

84419576

DECAL

Drain Engine Oil and Coolant

1шт.

22

84489976

DECAL

XR

1шт.

23

84538686

DECAL

Pad, Non-Slip Rear RH

1шт.

24

84538687

DECAL

Pad, Non-Slip Rear LH

1шт.

25

84428743

PAD

Non-Slip

1шт.

26

84428745

SLIDING PAD

Non-Slip

1шт.

27

84392469

ANTI-SKID STRIP

1шт.

28

47430049

PAD

1шт.

29

87429186

EMBLEM

Case Engine Medallion

1шт.

30

86532916

DECAL

Engine Oil

1шт.

31

87415931

DECAL

Case Engine

1шт.

32

84468362

DECAL,194mm x 170mm H

Case Eagle 170mm

2шт.

33

84478049

EMBLEM

Grill Medallion, Case

1шт.

34

84468361

DECAL,436mm x 27mm H

CASECE.COM, 475mm

1шт.

Выбрано товаров: 35
