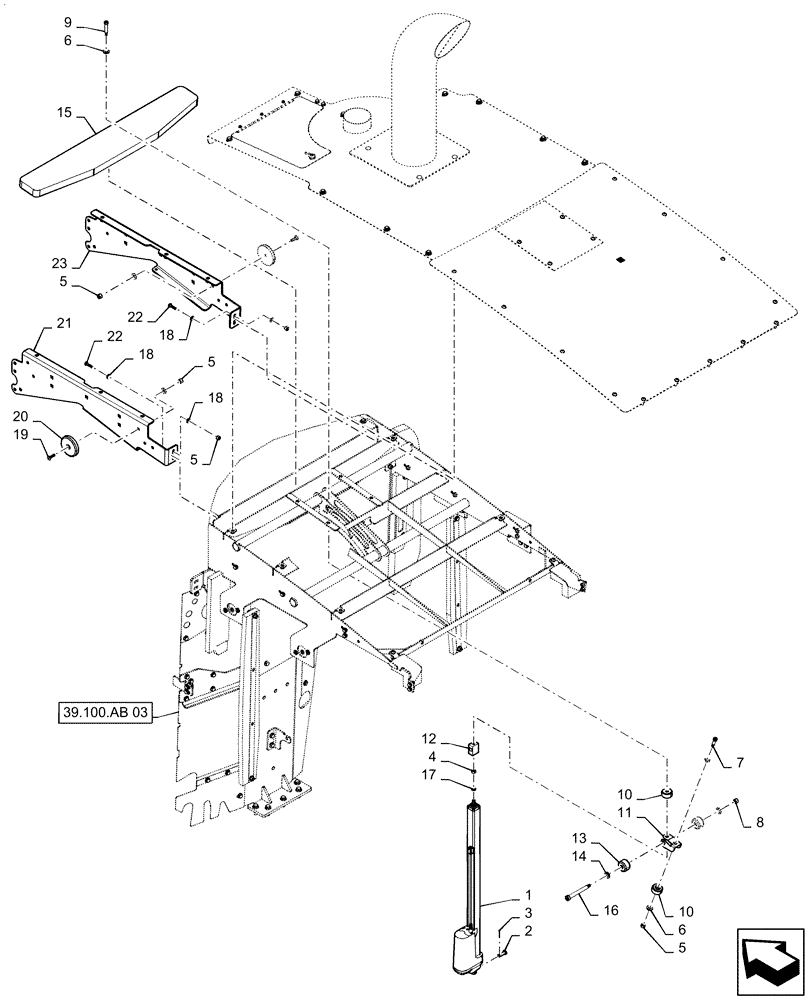

Запчасти Case 1021F (90.105.02[06]) - HOOD INSTALLATION (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84378117

ACTUATOR

Hood Lift

1шт.

2

728-1240

CLEVIS PIN,M12 x 40

1шт.

3

733-3232

COTTER PIN,M3.2 x 32

1шт.

4

829-1412

NUT,M12, Cl 10.9

1шт.

5

832-10410

NUT,M10 x 1.5, Cl 8

7шт.

6

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

2шт.

7

86639024

SCREW,Hex Soc, Shoulder, M10 12 X 30mm, Cl12.9

1шт.

8

832-10412

NUT,M12 x 1.75, Cl 8

1шт.

9

84539866

SCREW

Shouldered, 12.9 ZND

1шт.

10

84539867

ROLLER BEARING

Actuator

2шт.

11

84539864

BRACKET

Mount, Actuator

1шт.

12

84539897

MOUNT

Actuator Roller Bearing

1шт.

13

84539874

ROLLER BEARING

Spherical

2шт.

14

895-11016

WASHER,17.5mm ID x 30mm OD x 3mm Thk

2шт.

15

84391528

INSULATING PANEL

Hood Top

1шт.

16

84539865

SCREW

Shouldered, 12.9 ZND

1шт.

17

829-4412

NUT,Thin, M12 x 1.75, Cl 5

1шт.

18

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

10шт.

19

87381388

HEX SOC SCREW,Flat Hd, Csk, M10 x 1.5 x 35mm, Cl 10.9

2шт.

20

84327024

SUPPORT

Plastic

2шт.

21

47868829

BRACKET

Hydraulic Tank to Cooling Frame, LH

1шт.

22

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

4шт.

23

47868830

BRACKET

Hydraulic Tank to Cooling Frame, RH

4шт.
