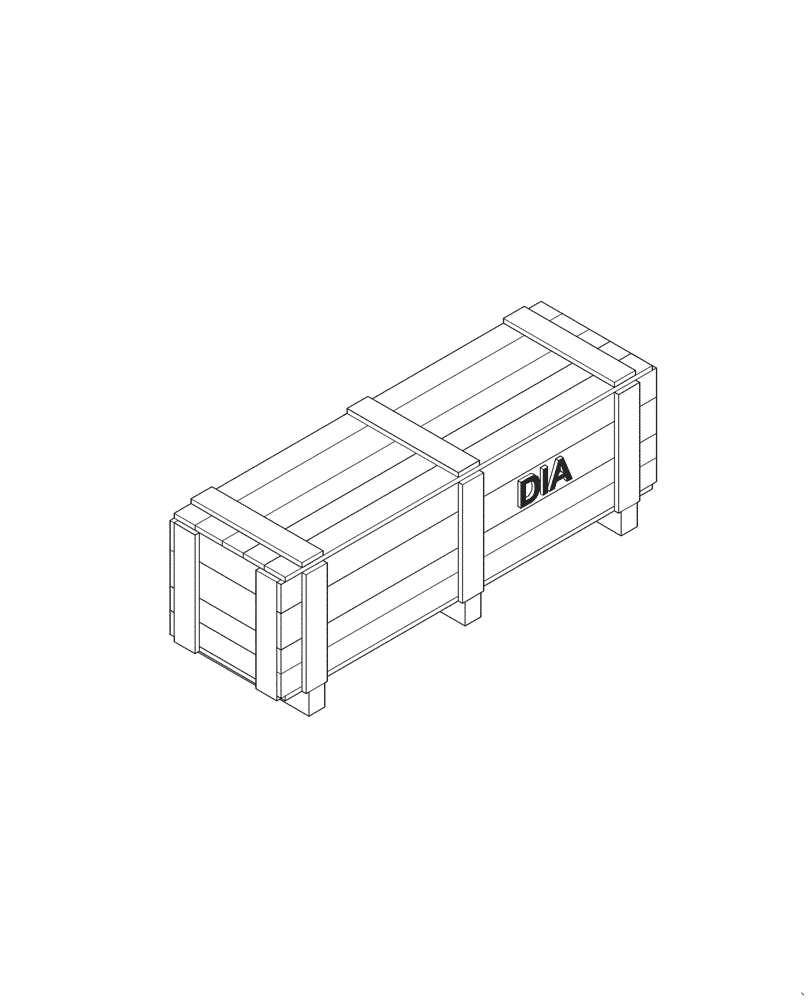

Запчасти Case 1021F (88.025.01) - AXLE COOLER (88) - ACCESSORIES

1

48016298

KIT

KIT, AXLE COOLER INCL 2 - 99

1шт.

2

48018038

INSTRUCTION

AXLE COOLER KIT

1шт.

3

87492034

HYDRAULIC PUMP

1шт.

4

47939643

ORIFICE

1шт.

5

700-104

HYD CONNECTOR,1-3/16" - 12 Male ORFS x M27 x 2 Male ORB

1шт.

6

700-307

ELBOW,90 Degree Elbow, 1-3/16" - 12 Male ORFS x M27 x 2 Male ORB

10шт.

7

700-350

ELBOW,90 Degree Elbow, 1-3/16" - 12 Male ORFS x M22 x 1.5 Male ORB

2шт.

8

84385142

BRACKET, SUPPORTING

PUMP SUPPORT

1шт.

9

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

21шт.

10

832-46410

NUT,M10 x 1.5, Cl 8

4шт.

11

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

5шт.

12

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

2шт.

13

701-123

UNION,1" - 14 Male ORFS x 1" - 14 Male ORFS

1шт.

14

84528088

BRACKET, SUPPORTING

SUPPORT

1шт.

15

701-919

BHD LOCK NUT,1" - 14

4шт.

16

87017731

ELBOW,45 Degree, 1"-14 Blkhd, ORFS

1шт.

17

84489966

TUBE

COOLER TO FRONT AXLE

1шт.

18

84399999

COOLER ASSY.

1шт.

19

87645502

GROMMET

2шт.

20

87529364

FILTER

AXLE FLUID

2шт.

21

84385151

BRACKET, SUPPORTING

AXLE COOLER FILTER SUPPORT

1шт.

22

84391489

BRACKET, SUPPORTING

AXLE COOLER FILTER SUPPORT

1шт.

23

87302137

ELBOW,45 Degree, 1 3/16"-12, ORFS, Blkhd

2шт.

24

86511329

WASHER,31mm ID x 56mm OD x 4mm Thk

4шт.

25

701-1249

BHD LOCK NUT,1-3/16" - 12

6шт.

26

84398378

HYD TUBE

SUCTION FRONT AXLE

1шт.

27

86837484

ELBOW,90 Degree, 1 3/16"-12. ORFS, Blkhd

4шт.

28

701-346

ELBOW,90 Degree Elbow, 1" - 14 Male ORFS x 1" - 14 Male ORFS

2шт.

29

896-11024

WASHER,26mm ID x 44mm OD x 5mm Thk

1шт.

30

84398376

HYD TUBE

RETURN REAR AXLE

1шт.

31

47530480

TUBE

SUCTION REAR AXLE

1шт.

32

47530497

TUBE

SUCTION FRONT AXLE

1шт.

33

47530478

TUBE

RETURN FRONT AXLE

1шт.

34

47530501

TUBE

SUCTION REAR AXLE

1шт.

35

47530499

TUBE

SUCTION FRONT AXLE

1шт.

36

47530482

TUBE

RETURN FRONT AXLE

1шт.

37

84490905

TUBE

FILTER TO AXLE COOLER

1шт.

38

84419535

HYD TUBE

FILTER TO AXLE COOLER

1шт.

39

87000140

CLAMP,Tube, 19.05mm

1шт.

40

1347127C1

PLATE

1шт.

41

515-25159

CLAMP,5/8", Insul, 1/2" Bolt

1шт.

42

84576157

RIGID TUBE

REAR AXLE SUCTION TO PUMP

1шт.

43

515-25190

CLAMP,3/4", Insul, 1/2" Bolt

4шт.

44

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

3шт.

45

832-10412

NUT,M12 x 1.75, Cl 8

3шт.

46

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

4шт.

47

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

48

832-10410

NUT,M10 x 1.5, Cl 8

9шт.

49

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

8шт.

50

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

8шт.

51

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

8шт.

52

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

1шт.

53

844-8050

BOLT,M8 x 1.25 x 50mm, Cl 8.8

1шт.

54

84398373

HYD TUBE

RETURN FRONT AXLE

1шт.

55

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

3шт.

56

47942309

TUBE

BRAKE TO AXLE COOLER MOTOR

1шт.

57

48060342

COVER

AXLE COOLER LINE

1шт.

58

47600625

COVER

AXLE COOLER MOTOR PUMP

1шт.

59

47600628

COVER

AXLE COOLER FILTER

1шт.

60

47600629

BRACKET

MOTOR PUMP MOUNTING

1шт.

61

47600626

COVER

AXLE COOLER MOTOR PUMP

1шт.

62

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

3шт.

63

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

11шт.

64

833-40310

NUT,M10, U

11шт.

65

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

2шт.

66

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

2шт.

67

892-11010

LOCK WASHER,M10

4шт.

68

827-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd

2шт.

69

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

4шт.

70

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

4шт.

71

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

1шт.

72

47935791

TUBE

BRAKE TO AXLE COOLER MOTOR

1шт.

73

47935794

TUBE

BRAKE TO AXLE COOLER MOTOR

1шт.

74

84489968

HOSE ASSY.,15.88mm ID x 748mm L, SAE 100R1

RR, RETURN AXLE

1шт.

75

84402101

HOSE ASSY.

SUCTION FRONT AXLE

1шт.

76

84402100

HOSE ASSY.

RETURN FRONT AXLE

1шт.

77

84398381

HOSE ASSY.

SUCTION REAR AXLE

1шт.

78

84582834

HOSE,19.05mm ID x 663mm L, SAE 100R1

PUMP TO REAR AXLE FILTER

1шт.

79

84582835

HOSE,19.05mm ID x 529mm L, SAE 100R1

PUMP TO FRONT AXLE FILTER

1шт.

80

47599256

TUBE

RETURN FRONT AXLE

1шт.

81

47597094

90 ELBOW

1шт.

82

47939642

VALVE

PRESSURE RELIEF

1шт.

83

47923578

SPACER

VALVE HOUSING

1шт.

84

700-305

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

1шт.

85

47923225

TUBE

AXLE COOLER MOTOR

1шт.

86

47923227

TUBE

AXLE COOLER MOTOR

1шт.

87

47923229

TUBE

AXLE COOLER MOTOR

1шт.

88

700-424

TEE,1-3/16" - 12 Male ORFS x 1-3/16" - 12 Male ORFS x M27 x 2 Male ORB

1шт.

89

47942312

BRACKET

TUBE SUPPORT

2шт.

90

701-906

CAP,1" - 14

1шт.

91

896-11006

WASHER,6.6mm ID x 12.5mm OD x 2mm Thk

4шт.

92

827-6070

BOLT,Hex, M6 x 70mm, Cl 10.9

2шт.

93

832-10406

NUT,M6 x 1, Cl 8

2шт.

94

84266050

CABLE TIE,384mm L, Polyamide

3шт.

95

47923213

HOSE

AXLE COOLER MOTOR

1шт.

96

47923579

HOSE

FAN PUMP

1шт.

97

47923212

BRACKET

VALVE SUPPORT

1шт.

98

47919746

TUBE

VALVE IN

1шт.
