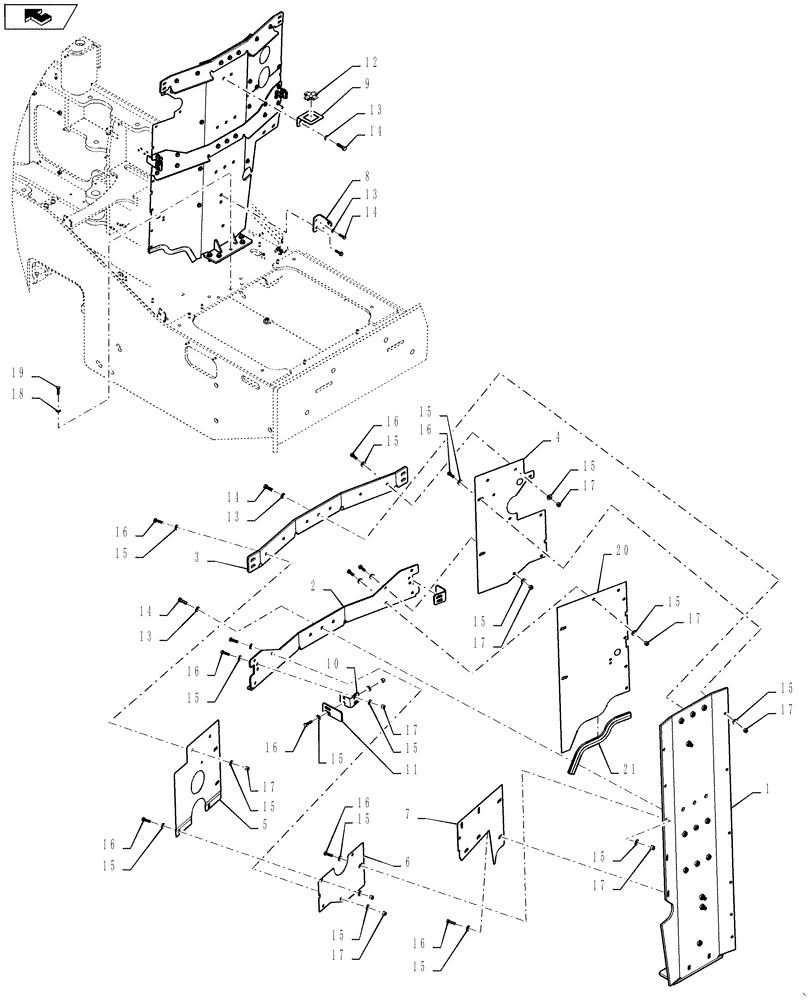

Запчасти Case 1021F (10.012.01) - ENGINE WALL (10) - ENGINE

1

84411992

PANEL SUPPORT

Firewall

1шт.

2

84357760

BRACKET, SUPPORTING

Middle

1шт.

3

84357761

BRACKET, SUPPORTING

Top Hood

1шт.

4

84382822

PLATE

Engine Wall Top Left

1шт.

5

84489979

PLATE

Engine Wall Top Right

1шт.

6

84489980

PLATE

Engine Wall Middle Right

1шт.

7

84489981

PLATE

Engine Wall Bottom Right

1шт.

8

84357770

BRACKET, SUPPORTING

Actuator Mount

1шт.

9

84315440

MOUNTING PLATE

Actuator Mount Top

1шт.

10

84351102

BRACKET

Door Latch Right Hand

2шт.

11

84351104

PLATE

Door Latch

2шт.

12

84315441

SEAL

4шт.

13

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

10шт.

14

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

10шт.

15

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

70шт.

16

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

31шт.

17

832-10410

NUT,M10 x 1.5, Cl 8

35шт.

18

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

5шт.

19

627-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 10.9, Full Thd

5шт.

20

84469562

PLATE

Engine Wall Lower Left

1шт.

21

90-2894T1

SEAL

0.43 Meters Required

1шт.

22

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.

23

627-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 10.9, Full Thd

4шт.

24

832-10406

NUT,M6 x 1, Cl 8

4шт.

25

84539820

SEAL

1шт.
