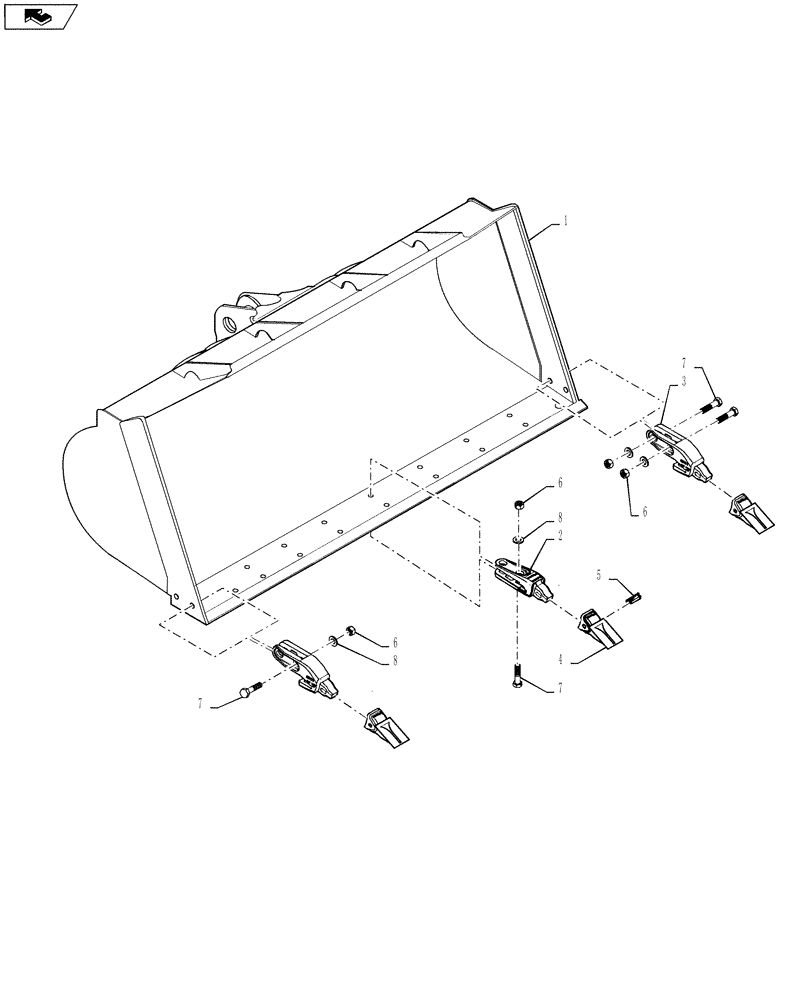

Запчасти Case 1021F (82.100.03[02]) - LOADER BUCKET WITH TEETH, 5.3 YD (82) - FRONT LOADER & BUCKET

1

84242190

BUCKET

Bucket With Teeth 5.3 yd inc 2-8

1шт.

1

84357792

CUTTING EDGE

Weld On Cutting Edge

1шт.

2

84168142

TEETH

Adapter Center

7шт.

3

84168138

TEETH

Adapter Corner

2шт.

4

84168139

BUCKET TOOTH POINT

9шт.

5

84168140

BUCKET TOOTH KEY

9шт.

6

429-1016

NUT,1"-8, G8

18шт.

7

426-1664

BOLT,Hex, 1" - 8 x 4", Gr 8

18шт.

8

496-21106

WASHER,1 1/16" x 2" x .209", HDN

18шт.

9

87527913

SKID PLATE

Segments Between Teeth, Incl 11 and 12

8шт.

10

429-1016

NUT,1"-8, G8

2 Nuts Per Segment

2шт.

11

L125966

PLOW BOLT,#3, Dome Hd, 1" - 8 x 3.50", Gr 8

2 Bolts Per Segment

2шт.
