(82.100.02[01]) - LOADER BUCKET WITH BOLT ON EDGE, 4.75 YD, HD

Запчасти Case 1021F (82.100.02[01]) - LOADER BUCKET WITH BOLT ON EDGE, 4.75 YD, HD (82) - FRONT LOADER & BUCKET

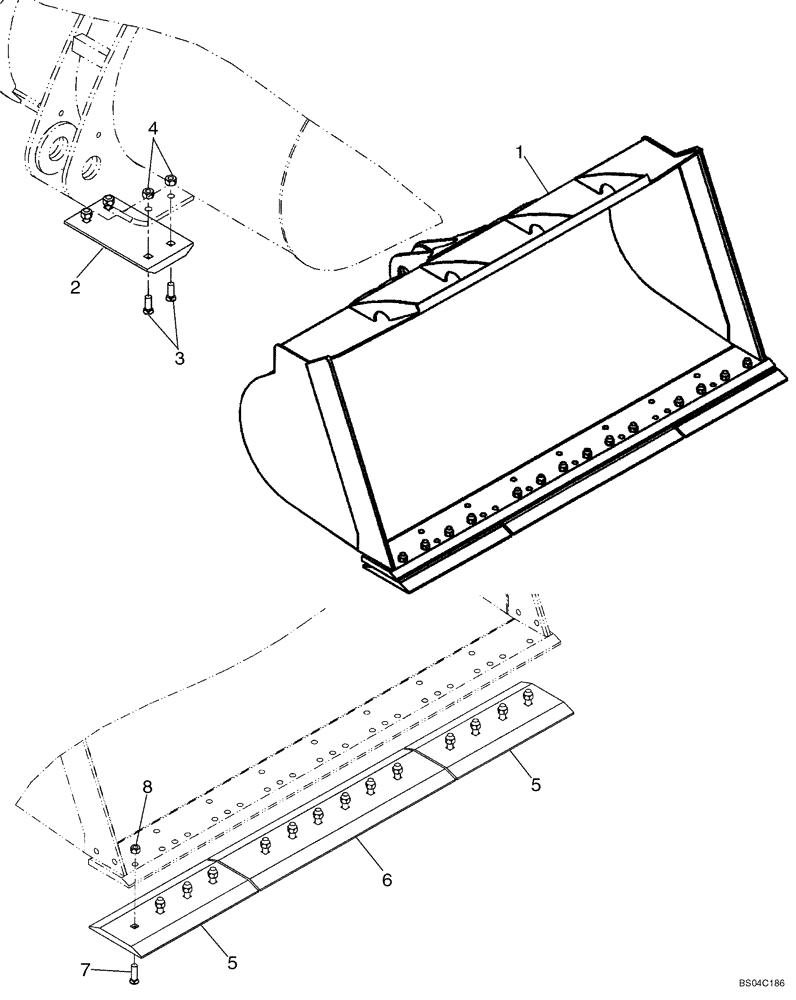

Схема запчастей Case 1021F - (82.100.02[01]) - LOADER BUCKET WITH BOLT ON EDGE, 4.75 YD, HD (82) - FRONT LOADER & BUCKET
8
7
3
1
5
4
2
6
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84248285

BUCKET

4.75 Yd Bucket with Blade; Includes Refs 2 - 8

1шт.

2

87527923

SKID PLATE

Bottom; Bolt On

2шт.

3

420-21240

CARRIAGE BOLT,#3, 3/4" - 10 x 2 1/2", Gr 8

8шт.

4

425-1612

NUT,3/4"-10, G5, Hvy

8шт.

5

84357794

BLADE

Outer; Bolt On

2шт.

6

84357793

BLADE

Inner; Bolt On

2шт.

7

L125966

PLOW BOLT,#3, Dome Hd, 1" - 8 x 3.50", Gr 8

18шт.

8

329-1016

NUT,1"-8, G8

18шт.
