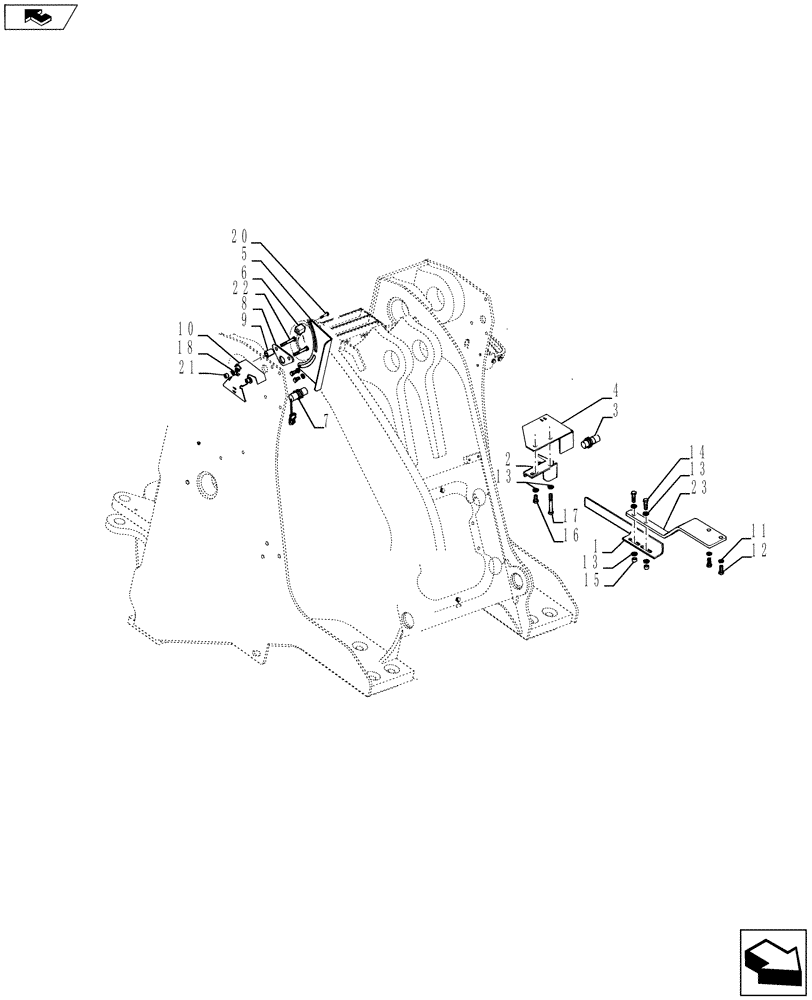

Запчасти Case 1021F (55.746.03) - CONTROL INSTALLATION - HGT AND RTT, TORQUE CONV Z-BAR (55) - ELECTRICAL SYSTEMS

1

87363671

SUPPORT

Harness Guard

1шт.

2

L125983

SUPPORT

Proximity Switch

1шт.

3

1546497C1

SWITCH

Proximity

1шт.

4

84355879

PROTECTIVE COVER

1шт.

5

87694569

PLATE

Target Mount

1шт.

6

87437102

BLOCK

2шт.

7

1546498C1

SWITCH

1шт.

8

87534446

BRACKET

1шт.

9

84307069

SPACER

2шт.

10

84307369

PROTECTIVE COVER

Switch

1шт.

11

892-11012

LOCK WASHER,M12

2шт.

12

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

2шт.

13

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

6шт.

14

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

2шт.

15

829-1412

NUT,M12, Cl 10.9

2шт.

16

627-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

1шт.

17

827-12090

BOLT,Hex, M12 x 1.75 x 90mm, Cl 10.9

1шт.

18

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

19

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

2шт.

20

811-12025

CARRIAGE BOLT,Sht Sq Nk, M12 x 1.75 x 25mm, Cl 8.8

2шт.

21

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

22

827-10070

BOLT,Hex, M10 x 1.5 x 70mm, Cl 10.9

2шт.

23

84307068

BRACKET

1шт.
