(55.746.01[01]) - CONTROL INSTALLATION - HGT AND RTT, HVT Z-BAR/XR

Запчасти Case 1021F (55.746.01[01]) - CONTROL INSTALLATION - HGT AND RTT, HVT Z-BAR/XR (55) - ELECTRICAL SYSTEMS

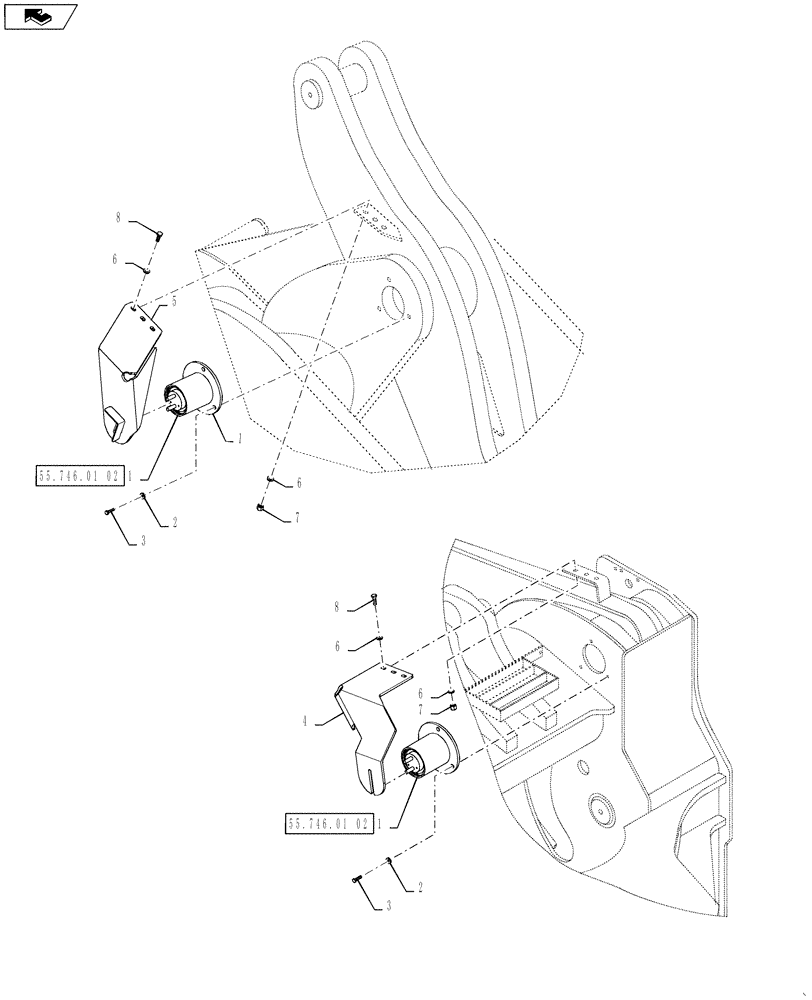

Схема запчастей Case 1021F - (55.746.01[01]) - CONTROL INSTALLATION - HGT AND RTT, HVT Z-BAR/XR (55) - ELECTRICAL SYSTEMS
7
8
1
1
6
55.746.01 02
6
home
7
6
2
4
55.746.01 02
3
1
5
3
2
8
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

NSS

NOT SOLD SEPARAT

Sensor Lift and Dump; See Figure 55.746.01 02

2шт.

2

86592711

WASHER,8.4mm ID x 21mm OD x 4mm Thk

6шт.

3

627-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

6шт.

4

84271372

LEVER

Lever

1шт.

5

84296058

COVER

Cover

1шт.

6

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

12шт.

7

832-10412

NUT,M12 x 1.75, Cl 8

6шт.

8

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

6шт.
