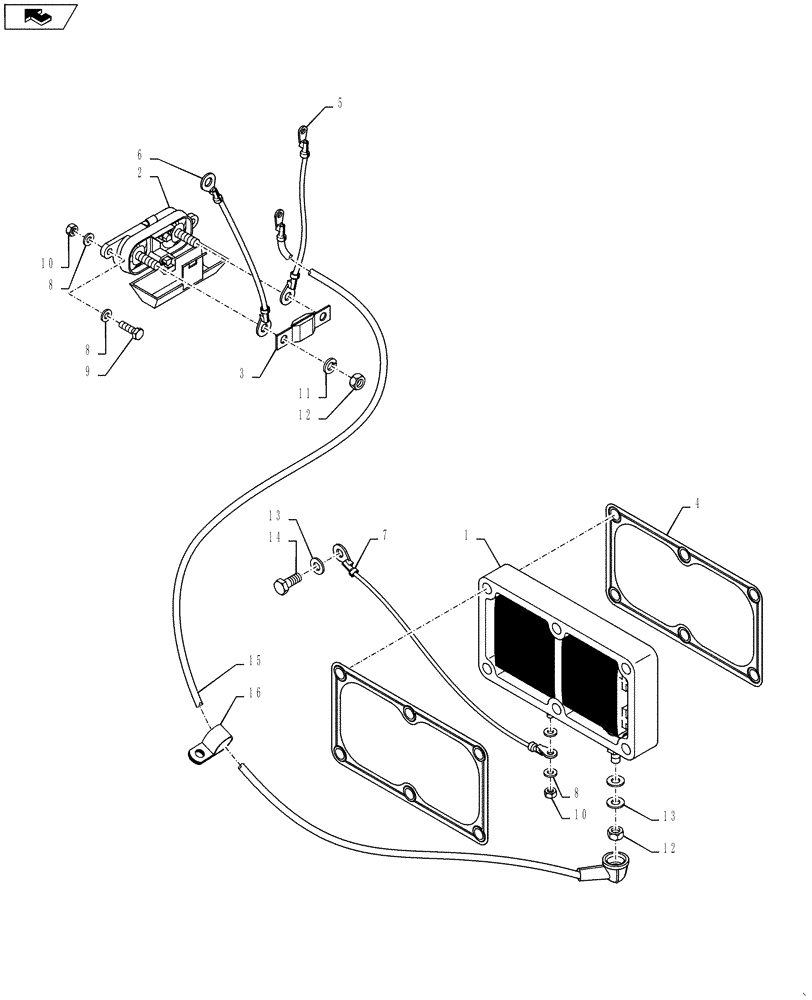

Запчасти Case 1021F (55.414.02) - GRID HEATER (55) - ELECTRICAL SYSTEMS

1

84357866

HEATER,24V, 115A, 2750W

1шт.

2

440038A1

JUNCTION BLOCK

1шт.

3

87455597

FUSE,200A

200 amp

1шт.

4

87492618

GASKET

2шт.

5

84542312

CABLE,120mm L

Cable

1шт.

6

84542313

CABLE,88mm L

Cable

1шт.

7

84542310

GROUND CABLE,340mm L

Ground

1шт.

8

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

10шт.

9

627-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 10.9, Full Thd

2шт.

10

829-1406

NUT,Hex, M6 x 1, Cl 10.9

3шт.

11

892-11008

LOCK WASHER,8mm ID

2шт.

12

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

3шт.

13

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

3шт.

14

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

1шт.

15

84542311

ELECTRIC CABLE,1117mm L

Cable Grid Heater Power

1шт.

16

515-22190

CLAMP,3/4", Insul, 5/16" Bolt

1шт.
