(55.404.04) - ROTATING BEACON INSTALLATION

Запчасти Case 1021F (55.404.04) - ROTATING BEACON INSTALLATION (55) - ELECTRICAL SYSTEMS

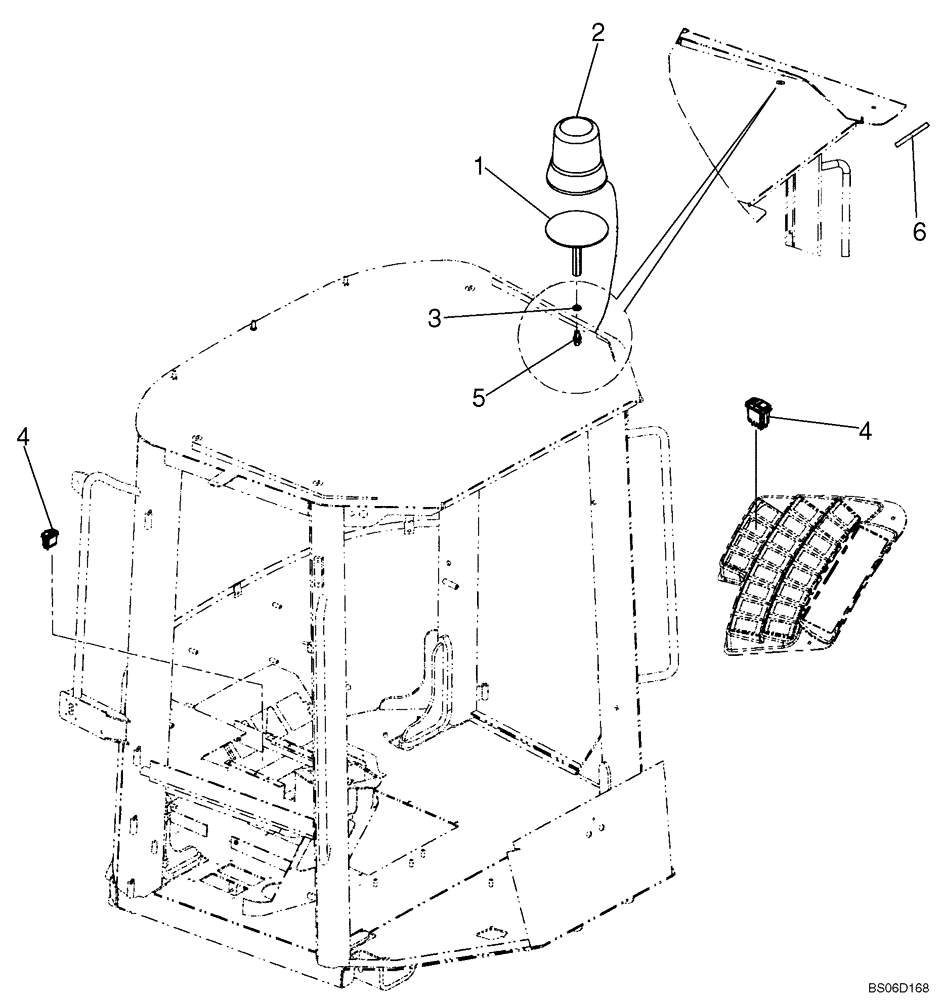

Схема запчастей Case 1021F - (55.404.04) - ROTATING BEACON INSTALLATION (55) - ELECTRICAL SYSTEMS
2
3
6
4
1
4
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87397102

SUPPORT

Rotating Beacon

1шт.

2

76041998

BEACON,24V, 70W

Rotating Beacon; See Figure 55.404.05

1шт.

3

892-11012

LOCK WASHER,M12

1шт.

4

374430A2

BEACON SWITCH

Rotating Beacon

1шт.

5

87515619

BOLT

Double Sided Thread

1шт.

6

60-6359T1

GASKET

7-5/8 inch, Cut to Fit From F64277 47 Foot Bulk Roll

1шт.
