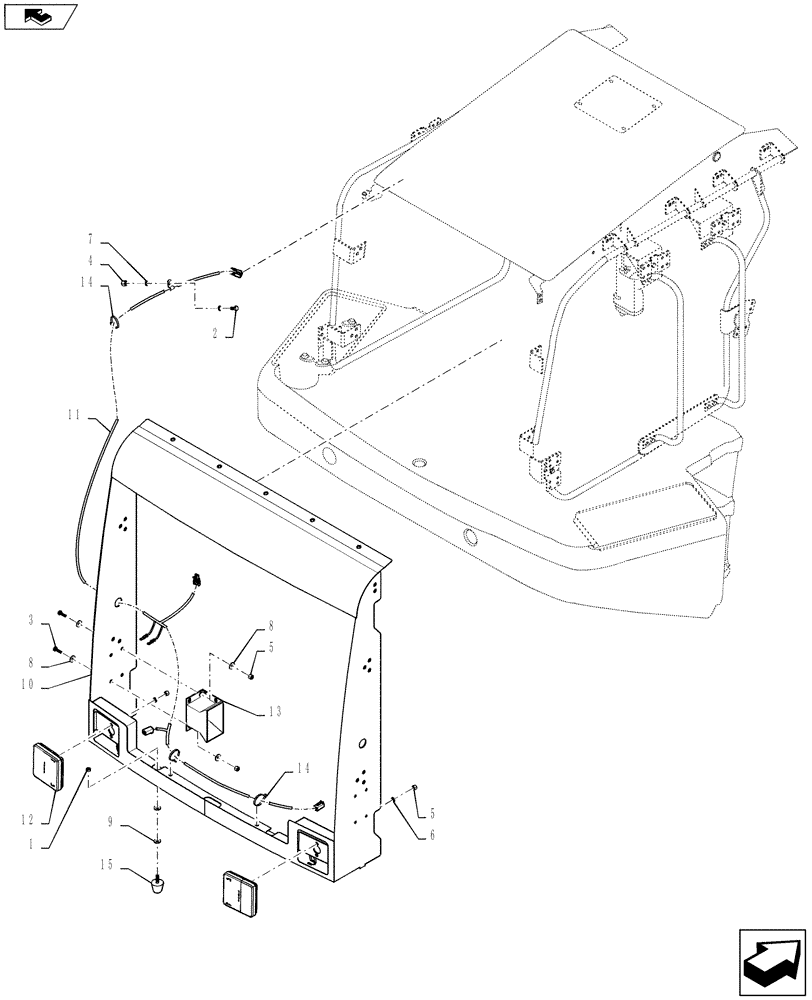

Запчасти Case 1021F (55.404.03) - TAIL LIGHT INSTALLATION NA/INT (55) - ELECTRICAL SYSTEMS

1

425-105

NUT,5/16"-18, G5

2шт.

2

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

1шт.

3

627-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 10.9, Full Thd

4шт.

4

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.

5

832-10406

NUT,M6 x 1, Cl 8

8шт.

6

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.

7

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

2шт.

8

895-25006

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

8шт.

9

896-15008

WASHER,9mm ID x 21mm OD x 2.5mm Thk

4шт.

10

84402137

SCREEN

1шт.

11

84386911

WIRE HARNESS

1шт.

12

87578654

TAIL LAMP

2шт.

13

D121972

ALARM

1шт.

14

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP

5шт.

15

N7673

BUMPER

2шт.

16

248-2373

GROMMET,1/2" ID x 1 1/4" Groove Dia, Str Cut

1шт.

17

832-10410

NUT,M10 x 1.5, Cl 8

3шт.

18

893-10006

LOCK WASHER,Ext Tooth, M6

1шт.

19

84402111

RUBBER SEAL,1048mm L

2шт.

20

84327024

SUPPORT

Plastic

2шт.

21

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

2шт.

22

87381388

HEX SOC SCREW,Flat Hd, Csk, M10 x 1.5 x 35mm, Cl 10.9

2шт.
