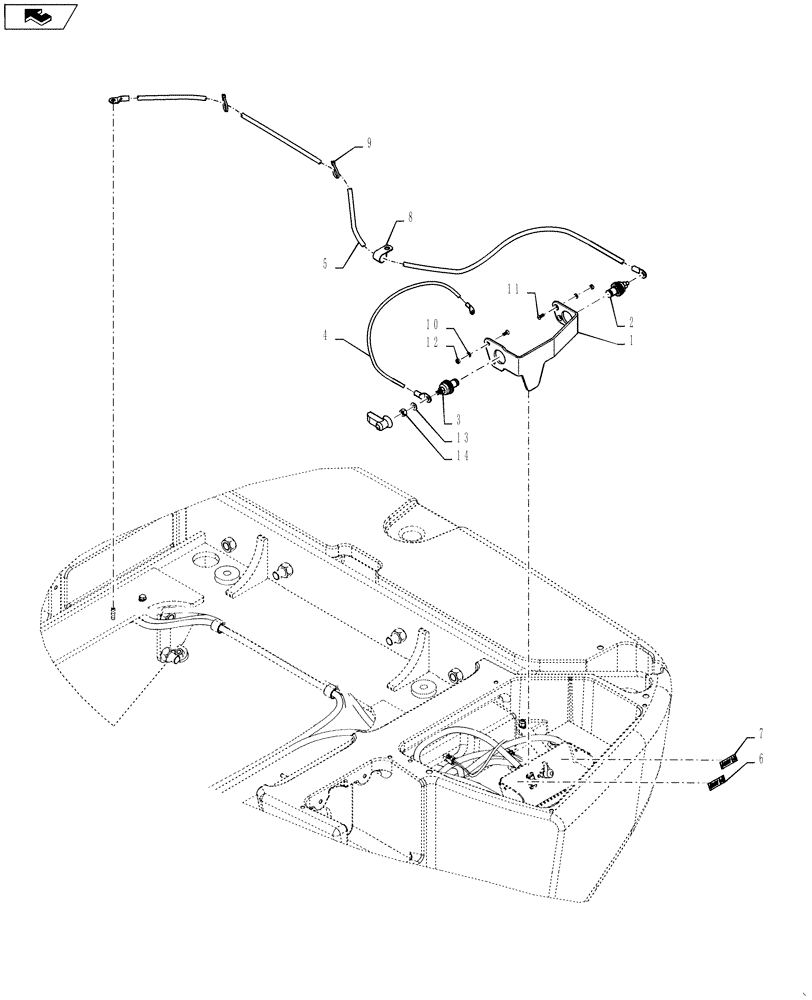

Запчасти Case 1021F (55.201.02) - REMOTE JUMPSTART POST INSTALLATION (55) - ELECTRICAL SYSTEMS

1

84477195

GUARD

1шт.

1

47367853

GUARD

, Start Serial: NDF219777

1шт.

2

84258928

TERMINAL CONNECTOR

Negative

1шт.

3

1964554C1

TERMINAL

Positive

1шт.

4

84477371

CABLE

Positive Disconnect, Serial Range: -

1шт.

5

84477373

CABLE

Negative to Chassis Ground

1шт.

6

84405137

DECAL

24 Volt Positive

1шт.

7

84405148

DECAL

24 Volt Negative

1шт.

8

515-25254

CLAMP,1", Insul, 1/2" Bolt

1шт.

9

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP

2шт.

10

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.

11

843-1616

SCREW,Flat , M6 x 16mm, Cl 4.8

4шт.

12

829-1406

NUT,Hex, M6 x 1, Cl 10.9

4шт.

13

L127554

WASHER,0.395" ID x 0.875" OD x 0.064" Thk

Brass

1шт.

14

L127555

NUT,Hex, 3/8" - 16

1шт.
