Запчасти Case 1021F (55.100.19) - HARNESS, CAB BOTTOM (55) - ELECTRICAL SYSTEMS

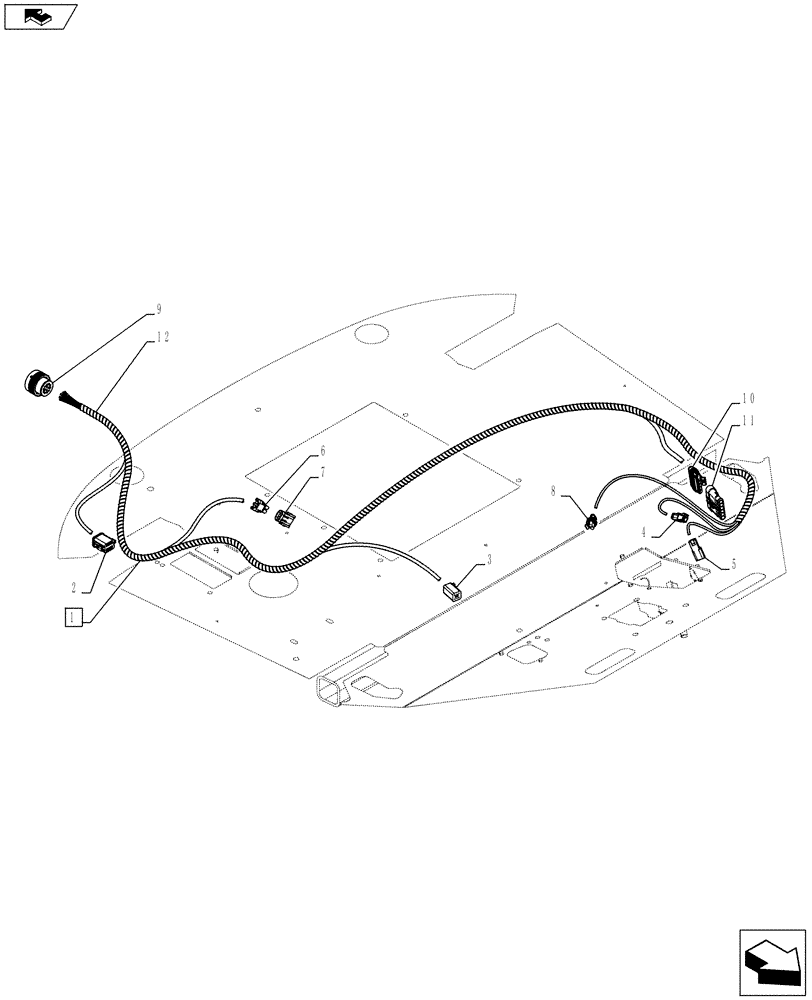

Схема запчастей Case 1021F - (55.100.19) - HARNESS, CAB BOTTOM (55) - ELECTRICAL SYSTEMS
2
1
home
8
4
11
5
7
3
6
12
10
9

Артикул

Название

Примечание

Количество

1

84328066

HARNESS

Cab Bottom Inc. 2-12

1шт.

2

225408C1

CONNECTOR, ELEC

CONNECTOR 8-Caviety Plug

1шт.

3

225351C1

ELEC CONNECTOR,Female, 6 Pin

6-Caviety Plug

1шт.

4

225316C1

ELEC CONNECTOR,Female, 2 Pin

2-Caviety Plug

1шт.

5

222136A1

ELEC CONNECTOR,Male, 2 Pin

2-Caviety Recepticle

1шт.

6

245482C1

ELEC CONNECTOR,2 Pin

2-Caviety Plug

1шт.

7

245483C1

ELEC CONNECTOR,Male, 2 Pin

2-Caviety Recepticle

1шт.

8

371614A1

ELEC CONNECTOR,Female, 2 Pin

2-Caviety Plug

1шт.

9

87703931

ELEC CONNECTOR

CONNECTOR, 14-Way Recepticle

1шт.

10

87710588

ELEC CONNECTOR

CONNECTOR, 1.5 Amp 6-Way Recepticle

1шт.

11

87691968

ELEC CONNECTOR,Female, 6 Cavities

CONNECTOR, 1.5 Amp 6-Way Tab

1шт.

12

NSS

NOT SOLD SEPARAT

Butt Splice

1шт.

Выбрано товаров: 12
