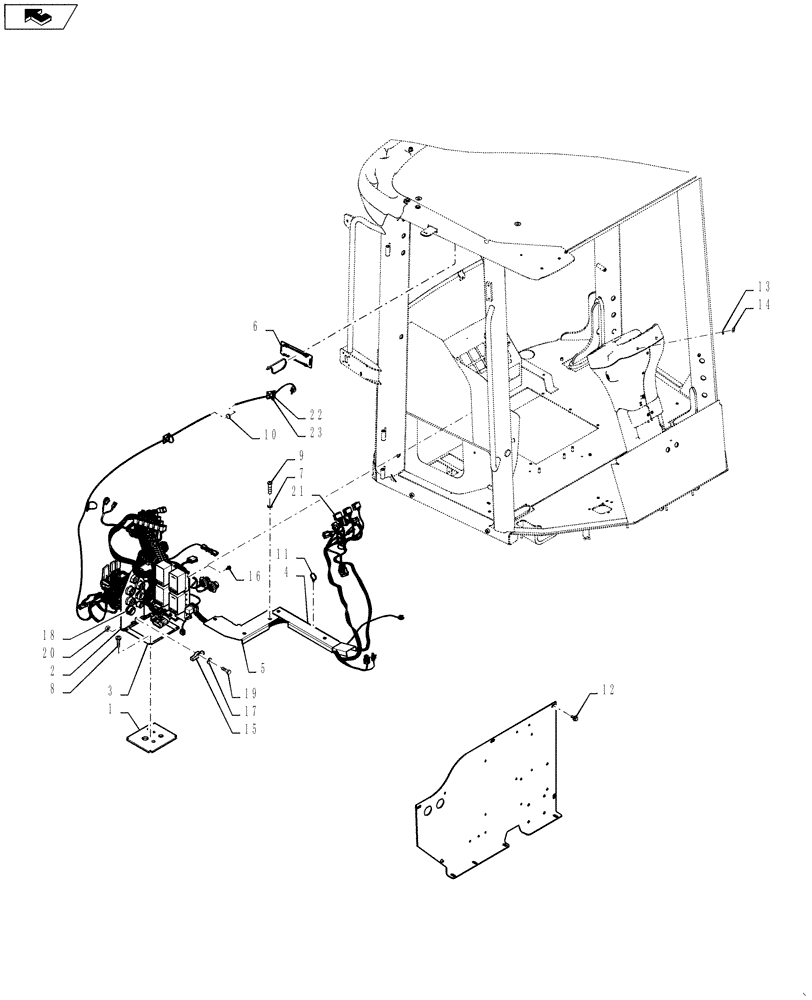

Запчасти Case 1021F (55.100.17) - HARNESS INSTALLATION, MAIN CAB COMPONENTS - HVT ONLY (55) - ELECTRICAL SYSTEMS

1

84376391

GASKET

1шт.

2

NSS

NOT SOLD SEPARAT

1шт.

3

76303258

PLATE

1шт.

4

84308110

COVER

1шт.

5

76303498

BRACKET

1шт.

6

76303606

COVER

1шт.

7

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

11шт.

8

840-1625

SCREW,Pan, M6 x 25mm, Cl 4.8

4шт.

9

840-1616

SCREW,Pan, M6 x 16mm, Cl 4.8

7шт.

10

71485202

GROMMET,M5 x 21 x 16

1шт.

11

87668737

CABLE TIE,203.2mm L, Nylon, Black

6шт.

12

86511478

BOLT,Hex Serr, M8 x 1.25 x 16mm

5шт.

13

L127554

WASHER,0.395" ID x 0.875" OD x 0.064" Thk

1шт.

14

253347A1

NUT,Hex, M10 x 1.5

1шт.

15

F22316

RESISTOR,75 Ohms 0.2 Amps DC

1шт.

16

840-1512

SCREW,Pan, M5 x 12mm, Gr 4.8

16шт.

17

895-11004

WASHER,4.3mm ID x 9mm OD x 0.8mm Thk

2шт.

18

86509545

SELF-TAP SCREW,#10 - 24 x 3/4"

2шт.

19

86511825

SCREW,Phillips Drive, Pan HD, M4 x 30mm, Cl 4.8

1шт.

20

832-10404

NUT,M4 x 0.7, Cl 8.8

1шт.

21

NSS

NOT SOLD SEPARAT

1шт.

22

22-823

MOUNT

3шт.

23

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP

3шт.
