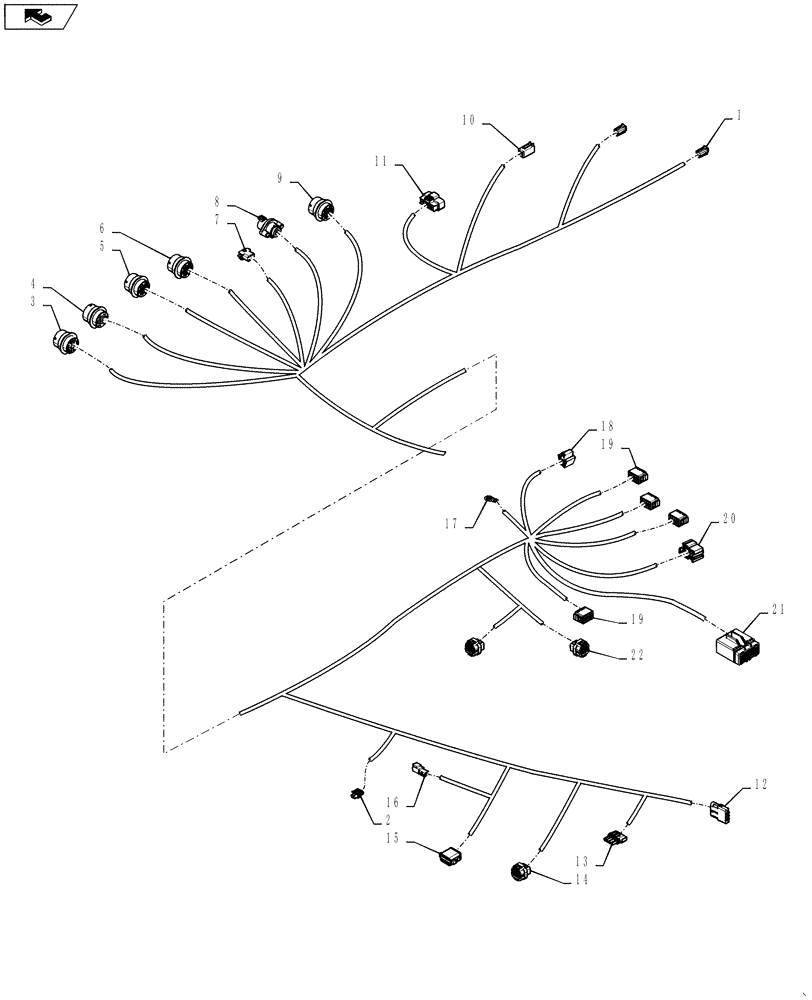

Запчасти Case 1021F (55.100.13[03]) - HARNESS, MAIN CAB (55) - ELECTRICAL SYSTEMS

1

NSS

NOT SOLD SEPARAT

2шт.

2

371614A1

ELEC CONNECTOR,Female, 2 Pin

2-Cavity Plug

1шт.

3

319184A1

CONNECTOR, ELEC

CONNECTOR 18-Cavity Receptacle

1шт.

4

NSS

NOT SOLD SEPARAT

1шт.

5

291661A1

CONNECTOR, ELEC

CONNECTOR 31-Cavity Receptacle

1шт.

6

380839A1

ELEC CONNECTOR,Female, 31 Pin

31-Cavity Receptacle

1шт.

7

291663A1

CONNECTOR, ELEC

CONNECTOR 6 Pin

1шт.

8

87315254

TERMINAL CONNECTOR

1шт.

9

87703918

TERMINAL CONNECTOR

21-Way Receptacle

1шт.

10

225351C1

ELEC CONNECTOR,Female, 6 Pin

6-Cavity Plug

1шт.

11

388710A1

CONNECTOR, ELEC

CONNECTOR

1шт.

12

245487C1

ELEC CONNECTOR,Male, 4 Pin

4-Cavity Receptacle

1шт.

13

245486C1

ELEC CONNECTOR,4 Pin

4-Cavity Plug

1шт.

14

87419488

MULTIPOLE CONNECTOR,Female, 26 Pole

1шт.

15

87635073

CONTACT HOUSING,Female, 10 Pole

1шт.

16

222136A1

ELEC CONNECTOR,Male, 2 Pin

2-Cavity Receptacle

1шт.

17

1964706C1

TERMINAL CONNECTOR

1шт.

18

225253C1

CONNECTOR, ELEC

CONNECTOR 6-Cavity

1шт.

19

382391A1

MULTIPOLE CONNECTOR,Female, 10 Pin

10-Cavity Plug

4шт.

20

87318288

TERMINAL CONNECTOR

1шт.

21

87410948

CONTACT HOUSING,Female, 26 Pole

26-Way Polarity

1шт.

22

87324391

TERMINAL CONNECTOR

2шт.
