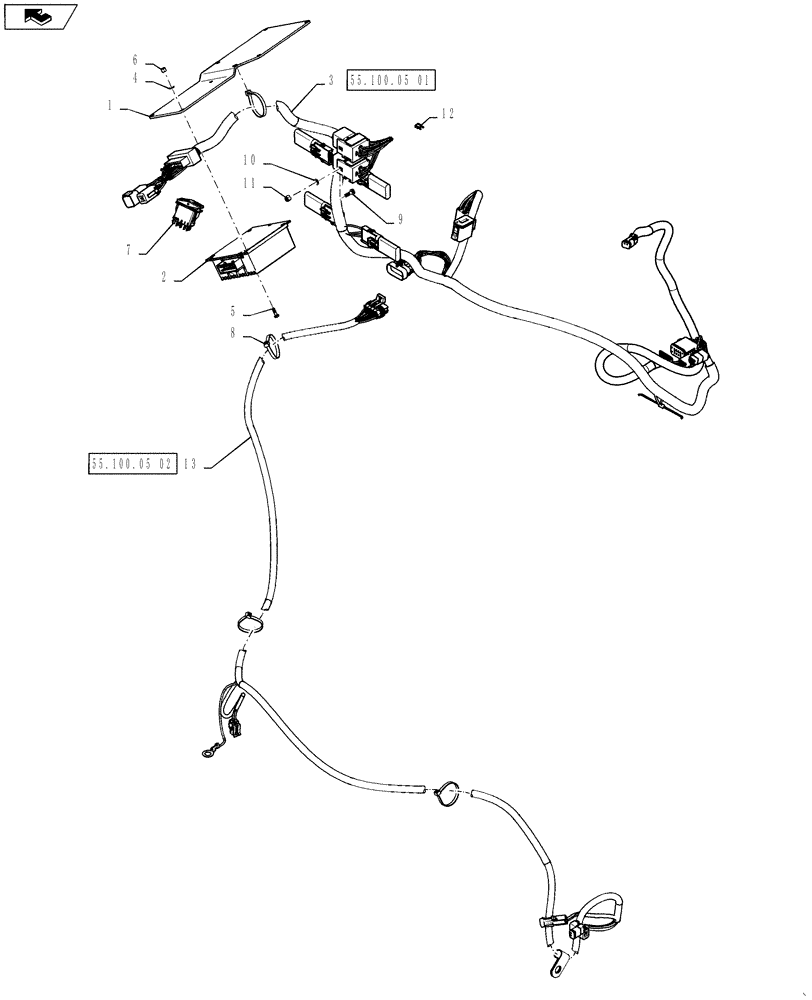

Запчасти Case 1021F (55.100.05) - JOYSTICK ELECTRIC INSTALLATION (55) - ELECTRICAL SYSTEMS

1

84185169

BRACKET

Controller Bracket

1шт.

2

84466150

MODULE

1шт.

3

84152428

WIRE HARNESS

Cab Joystick, See Fig 55.100.05 (01)

1шт.

4

895-11004

WASHER,4.3mm ID x 9mm OD x 0.8mm Thk

3шт.

5

840-1414

SCREW,Pan, Cl 4.8

7шт.

6

832-10404

NUT,M4 x 0.7, Cl 8.8

3шт.

7

87486588

SWITCH

JSS Activation

1шт.

8

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP

4шт.

9

840-1516

SCREW,Pan, M5 x 16mm, Cl 4.8

2шт.

10

895-11005

WASHER,5.5mm ID x 10mm OD x 1mm Thk

2шт.

11

832-10405

NUT,M5 x .8, Cl 8

2шт.

12

121412A1

FUSE,10A, Mini, Red

1шт.

13

84425143

WIRE HARNESS

Joystick Frame Harness, See Fig 55.100.05 (02)

1шт.
