Запчасти Case 1021F (55.100.05[01]) - JOYSTICK HARNESS (55) - ELECTRICAL SYSTEMS

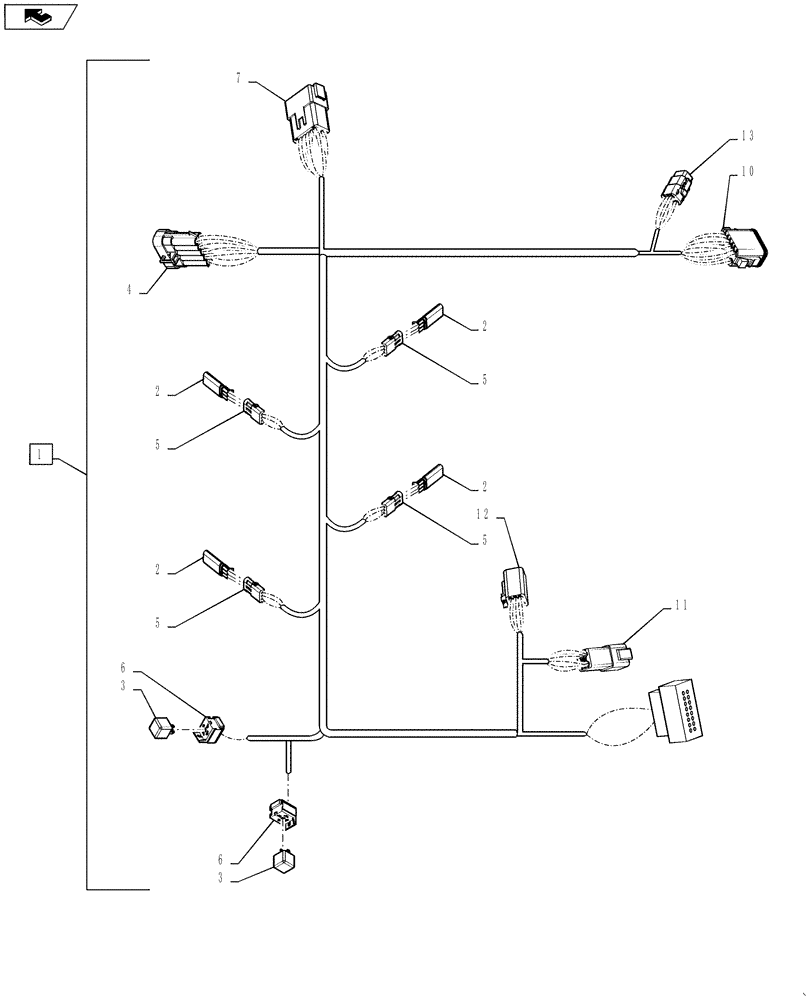

Схема запчастей Case 1021F - (55.100.05[01]) - JOYSTICK HARNESS (55) - ELECTRICAL SYSTEMS
5
5
1
2
home
6
3
10
3
5
6
2
12
13
11
7
5
2
2
4

Артикул

Название

Примечание

Количество

1

84152428

WIRE HARNESS

Joystick Harness Inc 2-14

1шт.

2

A187874

MODULE

4шт.

3

326845A1

RELAY,24V

2шт.

4

256354A1

CONNECTOR, ELEC

CONNECTOR F N R Console

1шт.

5

245485C1

ELEC CONNECTOR,Male, 3 Pin

3 Cavity Receptacle

4шт.

6

245731C1

CONNECTOR, ELEC

CONNECTOR 5 Cavity Minirelay Plug

2шт.

7

225388C1

ELEC CONNECTOR,Male, 12 Pin

12 Cavity Receptacle

1шт.

8

NSS

NOT SOLD SEPARAT

Resistor

1шт.

9

NSS

NOT SOLD SEPARAT

16 Pin

1шт.

10

225402C1

CONNECTOR, ELEC

CONNECTOR 12 Cavity Plug

1шт.

11

225350C1

ELEC CONNECTOR,Male, 6 Pin

6-Cavity Receptacle

1шт.

12

225351C1

ELEC CONNECTOR,Female, 6 Pin

6-Cavity Plug

1шт.

13

280451A1

CONNECTOR,ELECTRIC

6-Cavity Plug

1шт.

14

NSS

NOT SOLD SEPARAT

Splice

10шт.

Выбрано товаров: 14
