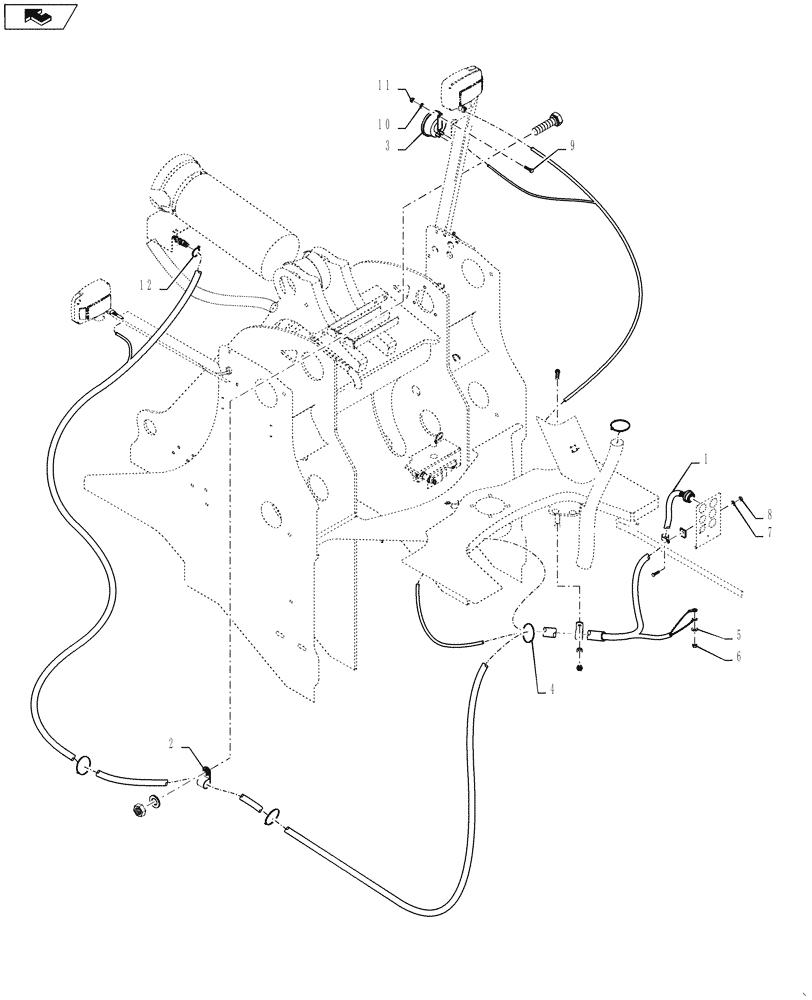

Запчасти Case 1021F (55.100.04) - FRONT CHASSIS HARNESS INSTALLATION (55) - ELECTRICAL SYSTEMS

1

84342033

WIRE HARNESS

Front Chassis, 55.100.04 (01)

1шт.

2

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

1шт.

3

251444A1

ASSEMBLY

Horn, 300Hz

1шт.

4

19-135

CABLE TIE

CABLE STRAP

5шт.

5

L127554

WASHER,0.395" ID x 0.875" OD x 0.064" Thk

2шт.

6

253347A1

NUT,Hex, M10 x 1.5

2шт.

7

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

1шт.

8

832-10406

NUT,M6 x 1, Cl 8

1шт.

9

627-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

4шт.

10

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

11

832-10408

NUT,M8 x 1.25, Cl 8.8

4шт.

12

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP

17шт.
