Запчасти Case 1021F (55.100.03[01]) - ENGINE HARNESS REAR CHASSIS ASSEMBLY (55) - ELECTRICAL SYSTEMS

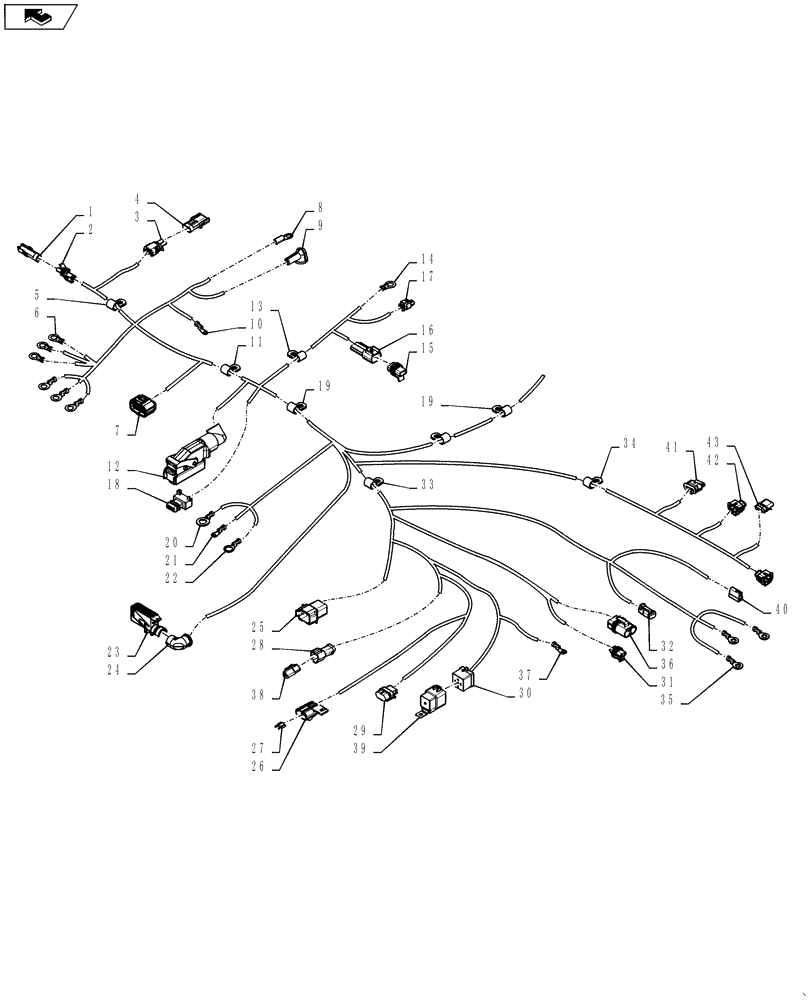

Схема запчастей Case 1021F - (55.100.03[01]) - ENGINE HARNESS REAR CHASSIS ASSEMBLY (55) - ELECTRICAL SYSTEMS
17
21
23
37
24
5
29
16
26
15
30
6
40
7
32
33
12
19
22
41
19
home
1
35
34
3
43
18
2
39
36
4
11
9
10
31
42
8
25
27
20
13
28
38
14

Артикул

Название

Примечание

Количество

1

245481C1

CONNECTION,ELECTRIC

1-Cavity Receptacle

1шт.

2

245480C1

ELEC CONNECTOR,1 Pin

1-Cavity Plug

1шт.

3

245482C1

ELEC CONNECTOR,2 Pin

2-Cavity Plug

1шт.

4

245483C1

ELEC CONNECTOR,Male, 2 Pin

2-Cavity Receptacle

1шт.

5

515-22127

CLAMP,1/2", Insul, 5/16" Bolt

1шт.

6

1964718C1

TERMINAL CONNECTOR

Ring Terminal

6шт.

7

87694583

ELEC CONNECTOR

12- Way Receptacle

1шт.

8

225067C1

TERMINAL CONNECTOR

1шт.

9

399470R1

BOOT

Cover

1шт.

10

1964709C1

TERMINAL CONNECTOR

1шт.

11

515-21175

1шт.

12

87632418

KIT

1шт.

13

515-22111

CLAMP,7/16", Insul, 5/16" Bolt

1шт.

14

1964706C1

TERMINAL CONNECTOR

1шт.

15

182069A1

CONNECTOR, ELEC

CONNECTOR

1шт.

16

182068A1

CONNECTOR, ELEC

CONNECTOR 2-Cavity Receptacle

1шт.

17

84192117

ELEC CONNECTOR

1шт.

18

8602416

CONNECTOR,ELECTRIC

3 Pin Plug

1шт.

19

515-23254

CLAMP,1", Insul, 3/8" Bolt

3шт.

20

386008A1

TERMINAL CONNECTOR

1шт.

21

1964720C1

TERMINAL CONNECTOR

1шт.

22

382256A1

TERMINAL CONNECTOR

1шт.

23

87713291

WIRE CONNECTOR

1шт.

24

84126246

ELBOW

1шт.

25

225320C1

ELEC CONNECTOR

1шт.

26

225156C1

ELEC CONNECTOR

1шт.

27

121412A1

FUSE,10A, Mini, Red

1шт.

28

84058092

CONTACT HOUSING,120 Ohm Resistor

1шт.

29

225155C1

CONNECTOR, ELEC

CONNECTOR

1шт.

30

225306C1

CONNECTOR, ELEC

CONNECTOR

1шт.

31

256340A1

CONNECTOR, ELEC

CONNECTOR

1шт.

32

225316C1

ELEC CONNECTOR,Female, 2 Pin

2-Cavity Plug

1шт.

33

515-22190

CLAMP,3/4", Insul, 5/16" Bolt

1шт.

34

515-2495

CLAMP,3/8", Insul, 7/16" Bolt

1шт.

35

8602094

3шт.

36

409084A1

ELEC CONNECTOR,Female, 2 Pin

1шт.

37

1964721C1

TERMINAL CONNECTOR

1шт.

38

225295C1

ELEC CONNECTOR,Female, 3 Pin

3-Cavity Plug

1шт.

39

84261547

RELAY

1шт.

40

3227856R1

CONNECTION

2-Cavity Receptacle

1шт.

41

84190317

WIRE CONNECTOR,Female, 5 Cavities

5 Way

1шт.

42

87709793

WIRE CONNECTOR,Female, 2 Cavities

2шт.

43

84062580

CONNECTOR, ELEC

CONNECTOR

1шт.

Выбрано товаров: 43
