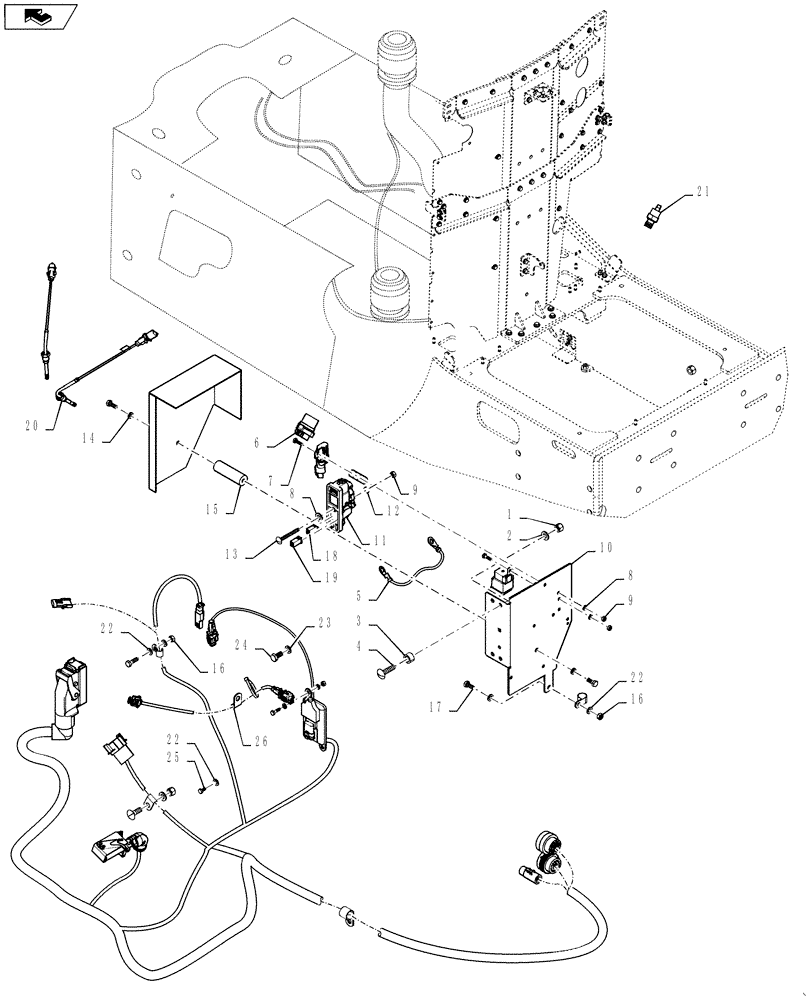

Запчасти Case 1021F (55.100.02[02]) - REAR CHASSIS HARNESS INSTALLATION (55) - ELECTRICAL SYSTEMS

1

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

See Figures 55.100.03 (01) and Figure 55.100.03 (02) for Harness Assembly

1шт.

2

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

2шт.

3

D44696

BUSHING

2шт.

4

711-10040

CARRIAGE BOLT,Short NK, M10 x 40, Cl8.8, Full Thd

2шт.

5

87629634

ELECTRIC CABLE

Starter Relay

1шт.

6

87351908

SOLENOID SWITCH

Starting Relay

1шт.

7

627-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 10.9, Full Thd

4шт.

8

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

5шт.

9

829-1406

NUT,Hex, M6 x 1, Cl 10.9

5шт.

10

84542841

MOUNTING PLATE

1шт.

11

87318627

MODULE

Power Relay

1шт.

12

892-11006

LOCK WASHER,M6

1шт.

13

412364

CARRIAGE BOLT,M6 x 1.0 x 56.6mm, Cl 8.8

1шт.

14

892-11008

LOCK WASHER,8mm ID

2шт.

15

404635A1

SPACER

1шт.

16

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

2шт.

17

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

1шт.

18

87327346

FUSE,40A, Green

40A 32 Volt

1шт.

19

87327342

FUSE,30 Amp

30A 32 Volt

1шт.

20

87482353

SENSOR

1шт.

21

321446A1

SENSOR

Engine Coolant

1шт.

22

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

5шт.

23

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

2шт.

24

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

2шт.

25

627-6012

BOLT,Hex, M6 x 1 x 12mm, Cl 10.9, Full Thd

1шт.

26

515-2279

CLAMP,5/16", Insul, 5/16" Bolt

1шт.
