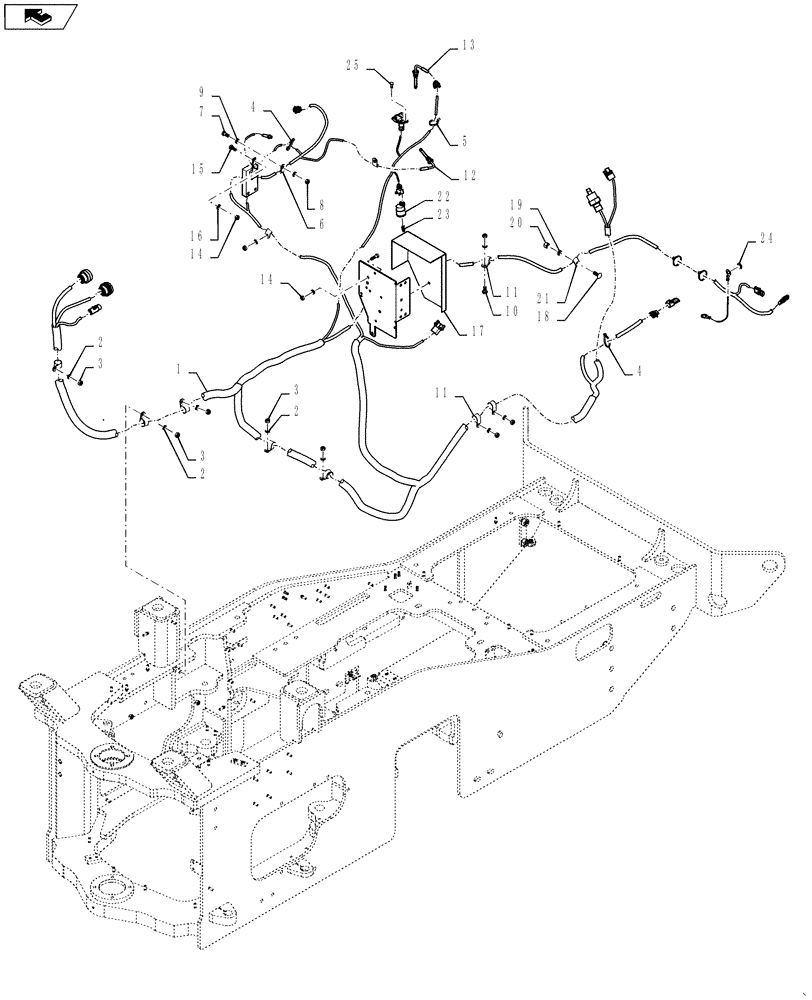

Запчасти Case 1021F (55.100.02[01]) - REAR CHASSIS ENGINE HARNESS INSTALLATION (55) - ELECTRICAL SYSTEMS

1

47663530

See Fig 55.100.03 (01),55.100.03 (02)

WIRE HARNESS

1шт.

2

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

10шт.

3

829-1410

NUT,M10 x 1.5, Cl 10.9

12шт.

4

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP

6шт.

5

87668737

CABLE TIE,203.2mm L, Nylon, Black

1шт.

6

515-2279

CLAMP,5/16", Insul, 5/16" Bolt

1шт.

7

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

3шт.

8

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

1шт.

9

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

10

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

1шт.

11

515-23270

CLAMP,1 1/16", Insul, 3/8" Bolt

1шт.

12

87482353

SENSOR

1шт.

13

84422745

SENSOR

1шт.

14

829-1406

NUT,Hex, M6 x 1, Cl 10.9

2шт.

15

627-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 10.9, Full Thd

2шт.

16

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

3шт.

17

84421770

PROTECTIVE COVER

Grid Heater Relay

1шт.

18

711-10030

CARRIAGE BOLT,Sq Nk, M10 x 1.5 x 30mm, Cl 8.8

1шт.

19

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

1шт.

20

832-10410

NUT,M10 x 1.5, Cl 8

1шт.

21

515-2495

CLAMP,3/8", Insul, 7/16" Bolt

3шт.

22

279492A1

RESTRICTION SWITCH

Air

1шт.

23

217-1079

HYD CONNECTOR,1/8" - 27 NPTF

1шт.

24

L127554

WASHER,0.395" ID x 0.875" OD x 0.064" Thk

2шт.

25

87695418

FLANGE BOLT,M6 x 1.0 x 16mm, Cl 10.9

2шт.
