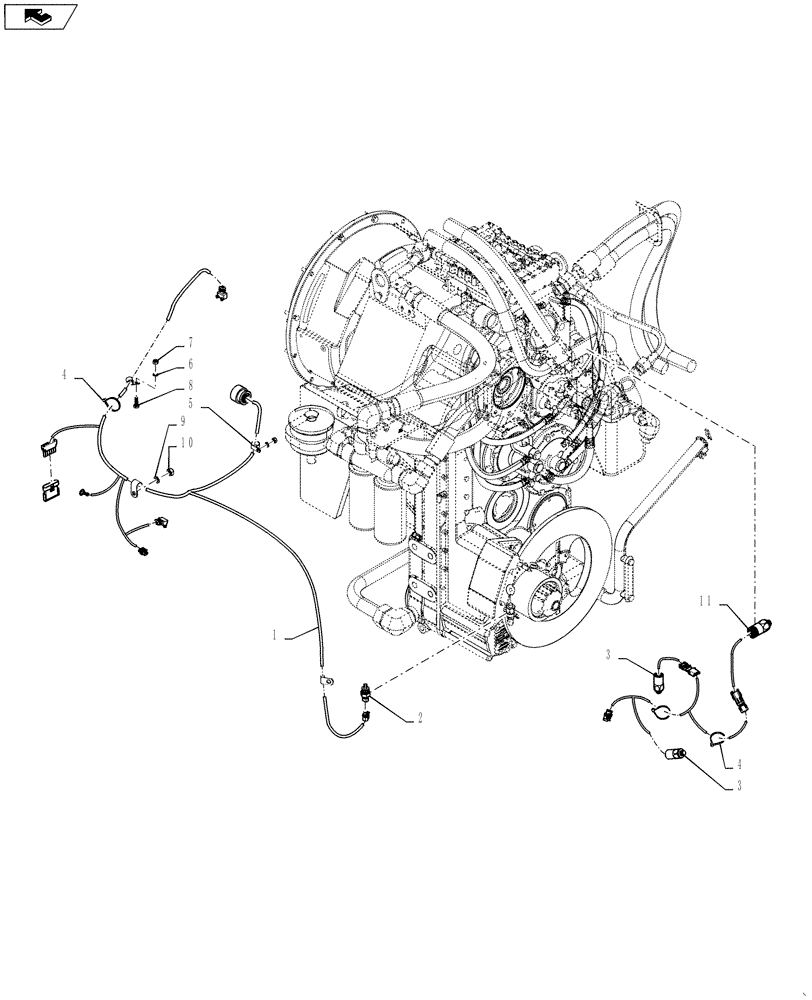

Запчасти Case 1021F (55.100.01) - TRANSMISSION HARNESS INSTALLATION (55) - ELECTRICAL SYSTEMS

1

84353700

WIRE HARNESS

See Fig 55.100.01 (01)

1шт.

2

321446A1

SENSOR

Hydraulic Oil Temperature Sensor

1шт.

3

87728742

SWITCH

Redundant Brake

2шт.

4

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP

2шт.

5

515-21222

CLAMP,7/8", Insul, 1/4" Bolt

1шт.

6

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

3шт.

7

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

2шт.

8

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

1шт.

9

515-2495

CLAMP,3/8", Insul, 7/16" Bolt

2шт.

10

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

3шт.

11

829-1410

NUT,M10 x 1.5, Cl 10.9

3шт.

12

84373730

PRESSURE SWITCH

1шт.

13

L127554

WASHER,0.395" ID x 0.875" OD x 0.064" Thk

1шт.

14

253347A1

NUT,Hex, M10 x 1.5

1шт.

15

450492R1

SPACER,1/2" Pipe x 1"

1шт.
