Запчасти Case 1021F (50.200.05) - AIR CONDITIONING LINE INSTALLATION (50) - CAB CLIMATE CONTROL

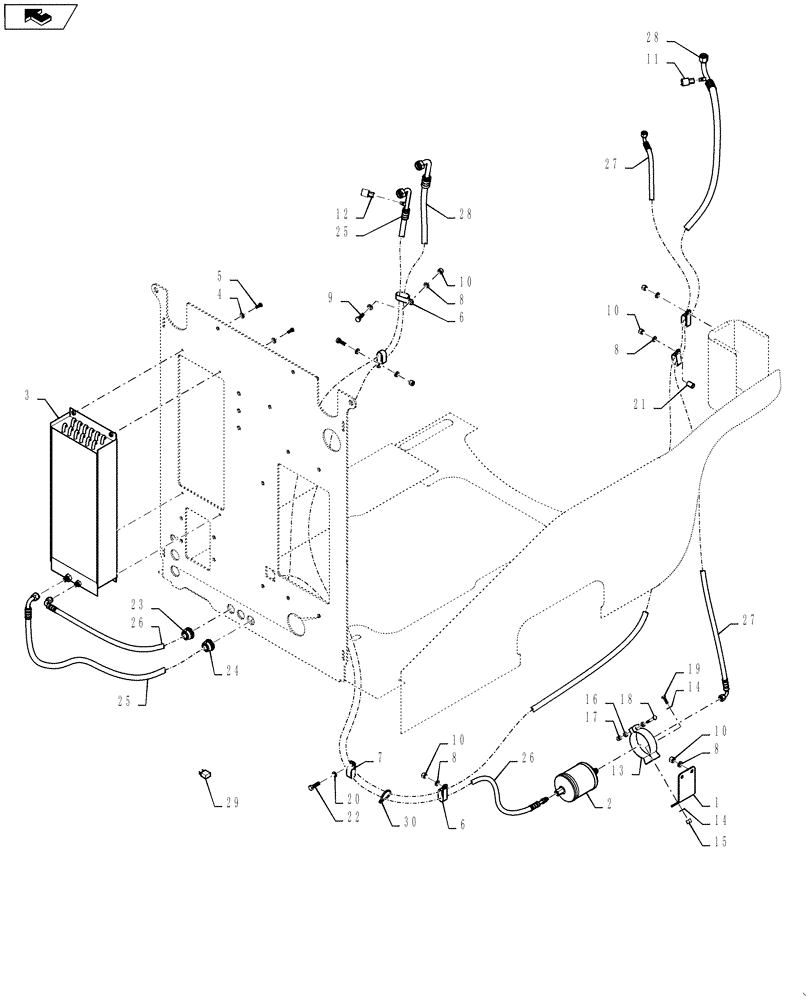

Схема запчастей Case 1021F - (50.200.05) - AIR CONDITIONING LINE INSTALLATION (50) - CAB CLIMATE CONTROL
29
23
15
17
18
12
24
27
25
8
16
4
10
8
30
22
11
6
14
3
7
6
28
19
13
1
21
10
home
8
26
9
8
28
2
14
26
25
5
10
27
20
10

Артикул

Название

Примечание

Количество

1

84332682

BRACKET

Receiver/Dryer

1шт.

2

295006A1

RECEIVER-DRYER

1шт.

3

8500878

CONDENSER

1шт.

4

892-11008

LOCK WASHER,8mm ID

4шт.

5

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

4шт.

6

R54363

CLAMP

Double

8шт.

7

515-25238

CLAMP,15/16", Insul, 1/2" Bolt

1шт.

8

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

12шт.

9

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

2шт.

10

832-10410

NUT,M10 x 1.5, Cl 8

10шт.

11

122579A1

SWITCH, A/C LOW PRES

A/C Low Pressure

1шт.

12

232948A1

SWITCH, A/C HIGH PRE

1шт.

13

433723A1

CLAMP

Receiver/Dryer

2шт.

14

896-11008

WASHER,9mm ID x 17mm OD x 2mm Thk

4шт.

15

832-10408

NUT,M8 x 1.25, Cl 8.8

2шт.

16

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.

17

832-10406

NUT,M6 x 1, Cl 8

2шт.

18

827-6040

BOLT,Hex, M6 x 40mm, Cl 10.9

2шт.

19

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

2шт.

20

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

1шт.

21

87036413

SPACER,10.34mm ID x 15.88mm OD x 23.8mm L

1шт.

22

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

1шт.

23

198826C1

GROMMET,19.05mm ID x 41.1mm OD x 26.9mm Thk

1шт.

24

198825C1

GROMMET,15.88mm ID x 41.1mm OD x 26.9mm Thk

1шт.

25

84406700

HOSE ASSY.

, Serial Range: Compressor-Condenser

1шт.

26

84406701

HOSE ASSY.

, Serial Range: Condenser-Dryer

1шт.

27

84331439

HOSE

, Serial Range: Dryer-Cab

1шт.

28

84406702

HOSE ASSY.

, Serial Range: Cab-Compresser

1шт.

29

87312626

RELAY,24V

5-Pin 280 Series

1шт.

30

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP

3шт.

Выбрано товаров: 30
