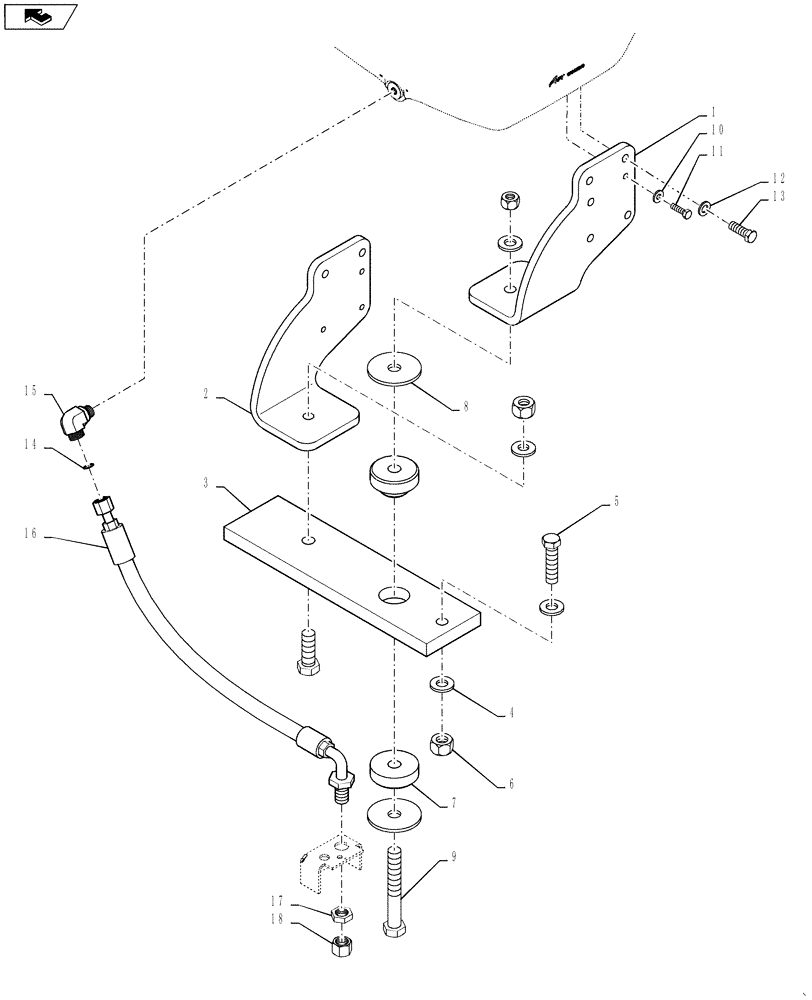

Запчасти Case 1021F (10.001.01[01]) - ENGINE MOUNTING (10) - ENGINE

1

84470431

BRACKET

RH Mount

1шт.

2

84470432

BRACKET

LH Mount

1шт.

3

84318997

MOUNTING PLATE

Engine

1шт.

4

896-15020

WASHER,22mm ID x 44mm OD x 5mm Thk

6шт.

5

827-20085

BOLT,Hex, M20 x 2.5 x 85mm, Cl 10.9

2шт.

6

832-41320

NUT,M20 x 2.5, Cl 10

4шт.

7

114360A1

HITCH DAMPER

Engine Mount

2шт.

8

379611A1

WASHER

Engine Mount Damper

4шт.

9

827-20140

BOLT,Hex, M20 x 2.5 x 140mm, Cl 10.9

2шт.

10

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

8шт.

11

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

8шт.

12

896-11014

WASHER,15.5mm ID x 28mm OD x 3mm Thk

4шт.

13

627-14045

BOLT,Hex, M14 x 2 x 45mm, Cl 10.9, Full Thd

4шт.

14

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

15

87426452

FITTING

Elbow, 90 Degree, 16MM ORFS x M22 ORB

1шт.

16

84397591

HYDRAULIC HOSE

Oil Drain

1шт.

17

218-1256

BHD LOCK NUT,Blkhd, 1 1/16"-12

1шт.

18

218-335

CAP,37 Degree, 1 1/16"-12

1шт.
