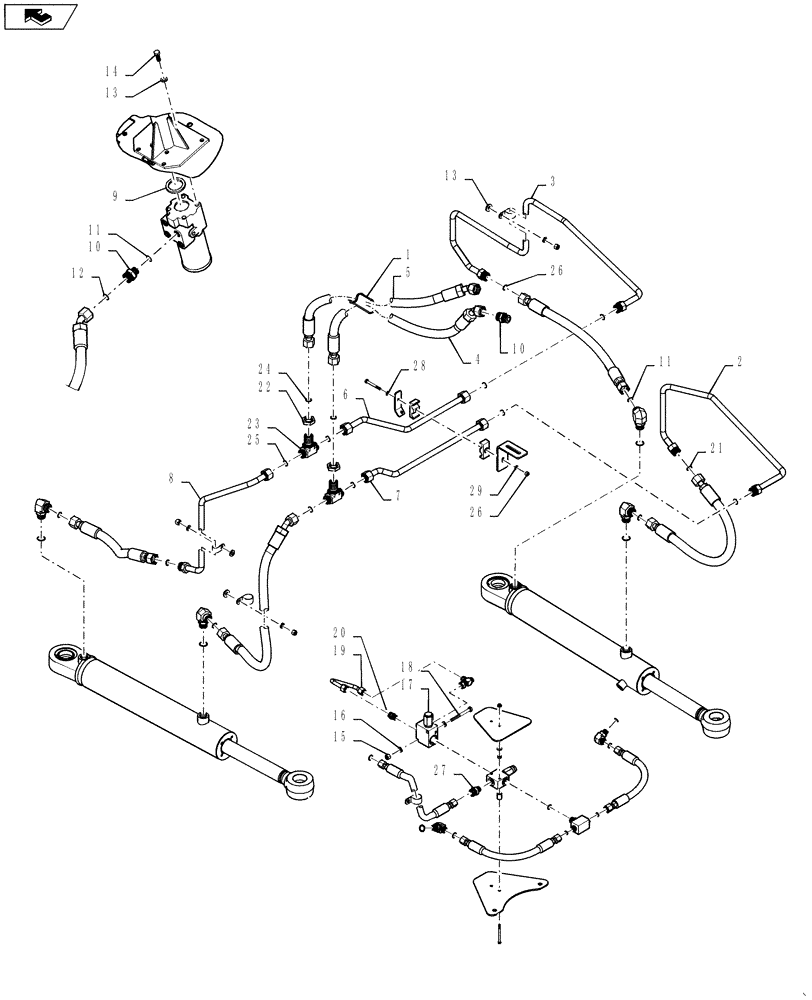

Запчасти Case 1021F (41.216.02) - STEERING HYDRAULIC LINES (41) - STEERING

1

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP

1шт.

2

84528073

RIGID TUBE

Steering Base Left

1шт.

3

84528078

RIGID TUBE

Steering Rod Left

1шт.

4

84491912

HOSE,19.05mm ID x 847mm L, SAE 100R12

, Serial Range: Orbitrol-Cylinder

1шт.

5

84491908

HOSE

Steering Left

1шт.

6

84398363

HYD TUBE

Steering Rod Left

1шт.

7

84311824

HYD TUBE

Steering Base Left

1шт.

8

84490575

TUBE

Steering Base Right

1шт.

9

76043957

GASKET

Steering Orbitrol

1шт.

10

700-107

HYD CONNECTOR,1-3/16" - 12 Male ORFS x M22 x 1.5 Male ORB

Also Order 11-12

2шт.

11

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

2шт.

12

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

2шт.

13

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

14

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

4шт.

15

832-10406

NUT,M6 x 1, Cl 8

2шт.

16

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.

17

87427823

VALVE PRESSURE RELIE

1шт.

18

827-6060

BOLT,Hex, M6 x 60mm, Cl 10.9

2шт.

19

84398370

HYD TUBE

, Serial Range: Relief-Return

1шт.

20

700-104

HYD CONNECTOR,1-3/16" - 12 Male ORFS x M27 x 2 Male ORB

1шт.

21

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

8шт.

22

701-1249

BHD LOCK NUT,1-3/16" - 12

2шт.

23

86900241

TEE,1-7/16"-12 ORFS, Bulkhead

Also Order 25-26

2шт.

24

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

2шт.

25

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

2шт.

26

832-10408

NUT,M8 x 1.25, Cl 8.8

2шт.

27

700-115

HYD CONNECTOR,1" - 14 Male ORFS x M18 x 1.5 Male ORB

1шт.

28

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

1шт.

29

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

2шт.
