(41.200.09 [02]) - JOYSTICK HARNESS, FRAME

Запчасти Case 1021F (41.200.09 [02]) - JOYSTICK HARNESS, FRAME (41) - STEERING

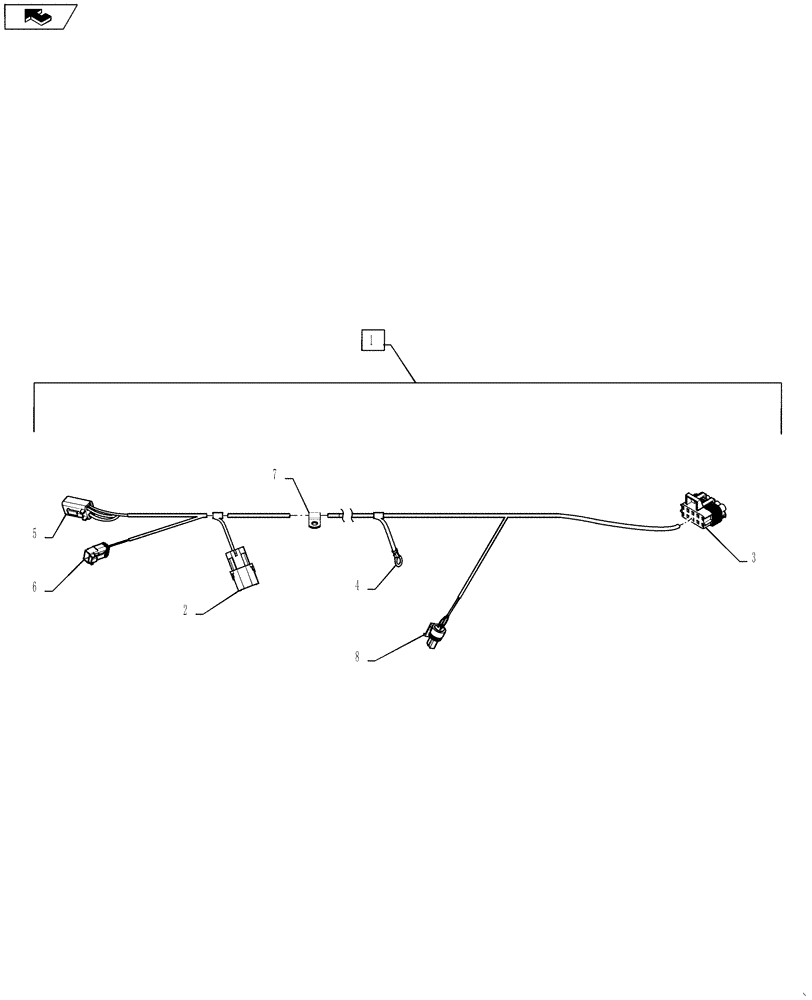

Схема запчастей Case 1021F - (41.200.09 [02]) - JOYSTICK HARNESS, FRAME (41) - STEERING
6
7
3
8
2
4
home
1
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84425143

WIRE HARNESS

Includes 2-8

1шт.

2

245483C1

ELEC CONNECTOR,Male, 2 Pin

2-Cavity Receptacle

1шт.

3

256352A1

CONNECTOR, ELEC

CONNECTOR 10-Cavity Plug

1шт.

4

1964706C1

TERMINAL CONNECTOR

Ring

1шт.

5

239451A1

MULTIPOLE CONNECTOR,Female, 4 Pin

1шт.

6

225316C1

ELEC CONNECTOR,Female, 2 Pin

1шт.

7

515-25127

CLAMP,1/2", Insul, 1/2" Bolt

1шт.

8

198456A1

ELEC CONNECTOR,Female

3-Cavity Plug

1шт.
