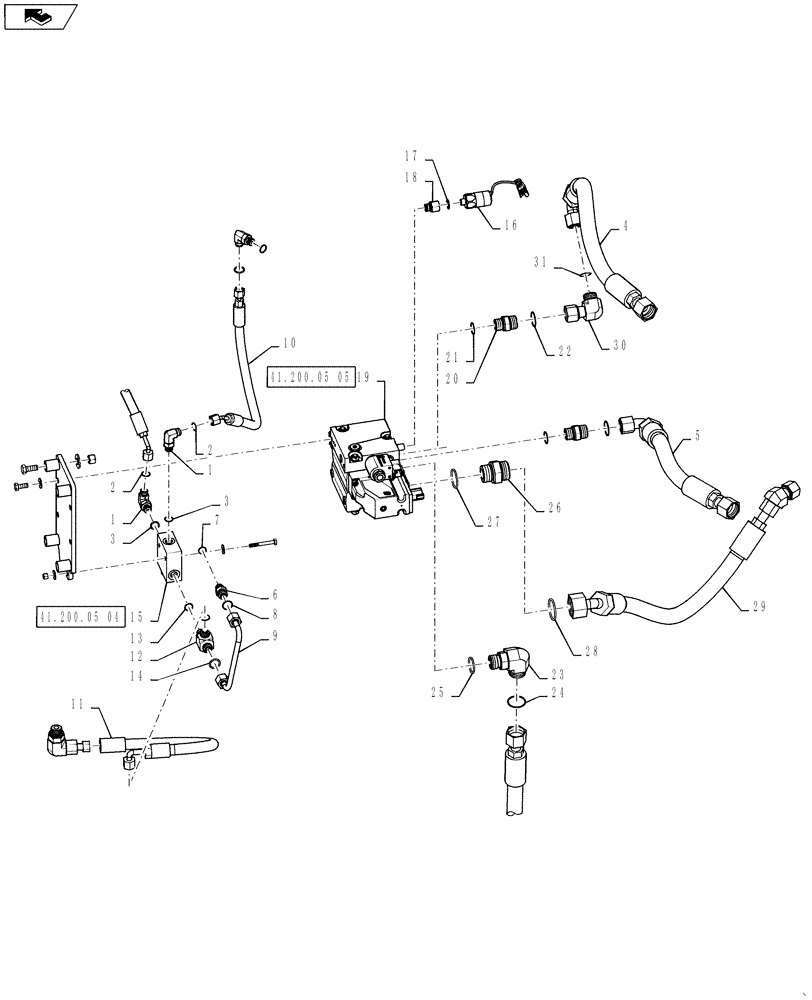

Запчасти Case 1021F (41.200.05[01]) - STANDARD STEERING WITH JOYSTICK HYDRAULIC INSTALLATION (41) - STEERING

1

700-378

ELBOW,90 Degree Elbow, 9/16" - 18 Male ORFS x M14 x 1.5 Male ORB

Also Order 2-3

3шт.

2

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

3шт.

3

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

3шт.

4

84528080

HOSE ASSY.

Joystick Steering, Right Hand

1шт.

5

84528081

HOSE ASSY.

Joystick Steering, Left Hand

1шт.

6

700-101

HYD CONNECTOR,11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

Also Order 7-8

1шт.

7

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

8

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

9

84197261

HYD TUBE,9.52 mm OD x 139, 51 mm L

Steering LS

1шт.

10

84489951

HOSE ASSY.

Joystick to Priority Valve

1шт.

11

84349989

HOSE

Accumulator to PVFC Valve

1шт.

12

84197249

TEE

Also Order 13-14

1шт.

13

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

14

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

15

87719987

VALVE

See Fig 41.200.05 (04)

1шт.

16

84175670

PRESSURE SWITCH

Pilot Pressure

1шт.

17

396471A1

SEAL,11.71mm ID x 19.3mm OD x 1.68mm Thk

1шт.

18

87487329

FITTING,M14 x 1.5 ORB x M12 x 1.5 ORB

Reducer

1шт.

19

84238869

STEERING VALVE

Proportional Valve, See Fig. 41.200.05 (05)

1шт.

20

700-103

HYD CONNECTOR,1" - 14 Male ORFS x M22 x 1.5 Male ORB

Also Order 21-22

2шт.

21

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

22

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

2шт.

23

700-307

ELBOW,90 Degree Elbow, 1-3/16" - 12 Male ORFS x M27 x 2 Male ORB

Also Order 24-25, For Joy Stick With Secondary Steering See Fig #32

1шт.

24

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

25

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

1шт.

26

700-105

HYD CONNECTOR,1-7/16" - 12 Male ORFS x M33 x 2 Male ORB

Also Order 27-28

1шт.

27

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

28

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

29

84528093

HOSE ASSY.

To Return Manifold

1шт.

30

701-361

ELBOW,90 Degree Elbow, 1" - 14 Male ORFS x 1" - 14 Female ORFS

Also Order 31

1шт.

31

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

32

700-104

HYD CONNECTOR,1-3/16" - 12 Male ORFS x M27 x 2 Male ORB

Also Order # 33-34

1шт.

33

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

1шт.

34

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.
