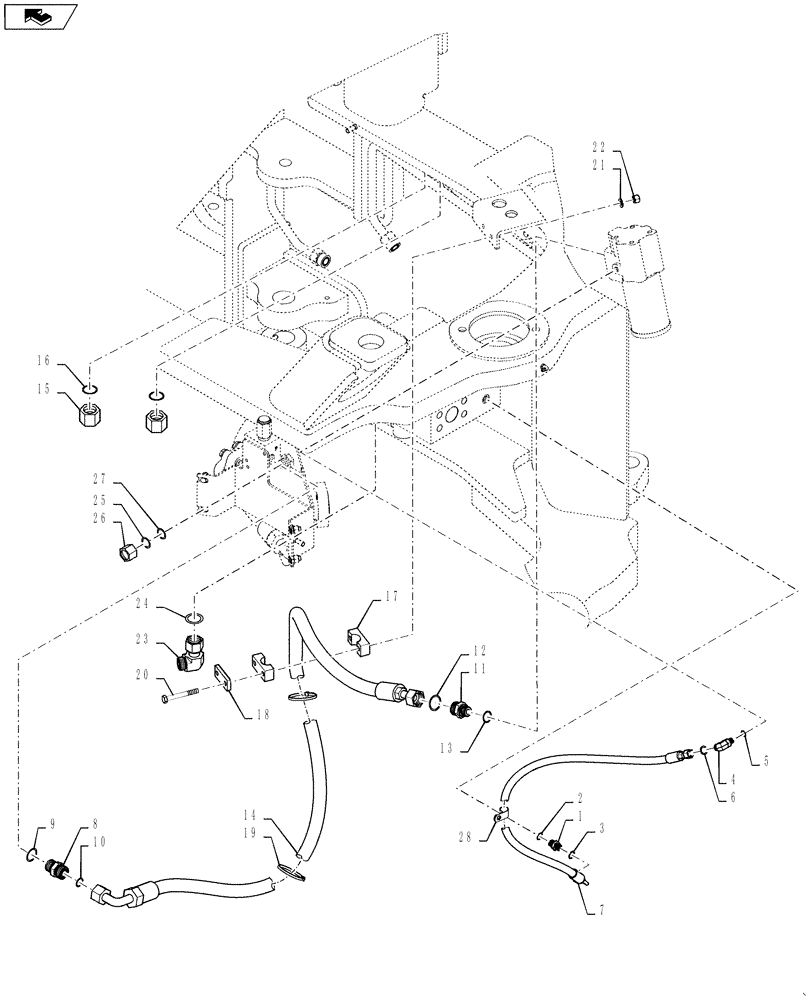

Запчасти Case 1021F (41.200.04) - STANDARD AND SECONDARY STEERING NO JOYSTICK (41) - STEERING
№
Артикул
Название
Примечание
Количество
1
700-153
HYD CONNECTOR,9/16" - 18 Male ORFS x M14 x 1.5 Male ORB
Also Order 2-3
1шт.
2
238-6011
O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro
1шт.
3
637-63113
O-RING,2.2mm Thk x 11.3mm ID, Cl 6
1шт.
4
700-303
ELBOW,90 Degree Elbow, 9/16" - 18 Male ORFS x M12 x 1.5 Male ORB
Also Order 5-6
1шт.
5
238-6011
O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro
1шт.
6
637-63093
O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro
1шт.
7
84377156
HOSE ASSY.
Load Sense, With Secondary Steering
1шт.
8
700-104
HYD CONNECTOR,1-3/16" - 12 Male ORFS x M27 x 2 Male ORB
Also Order 9-10
1шт.
9
238-6018
O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro
1шт.
10
637-64236
O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro
1шт.
11
700-107
HYD CONNECTOR,1-3/16" - 12 Male ORFS x M22 x 1.5 Male ORB
Also Order 12-13
1шт.
12
238-6018
O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro
1шт.
13
637-63173
O-RING,2.2mm Thk x 17.3mm ID, Cl 6, 75 Duro
1шт.
14
84361701
HOSE ASSY.
Orbitrol to Relief Valve
1шт.
15
701-907
CAP,1-3/16" - 12
Also Order 16
2шт.
16
238-6018
O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro
2шт.
17
372453A1
BLOCK
Tube Mounting
1шт.
18
367658A1
PLATE
Cover Plate
1шт.
19
L11541
CABLE TIE,203.2mm L, Nylon
CABLE STRAP
2шт.
21
895-11010
WASHER,11mm ID x 20mm OD x 2mm Thk
2шт.
22
832-10410
NUT,M10 x 1.5, Cl 8
2шт.
23
701-342
ELBOW,90 Degree Elbow, 1-3/16" - 12 Male ORFS x 1-3/16" - 12 Female ORFS
Also Order 24, Start Serial: NCF215302
1шт.
24
238-6018
O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro
1шт.
25
238-6016
O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro
1шт.
26
701-906
CAP,1" - 14
Also Order 27
1шт.
28
515-23175
CLAMP,11/16", Insul, 3/8" Bolt
1шт.
Выбрано товаров: 29
