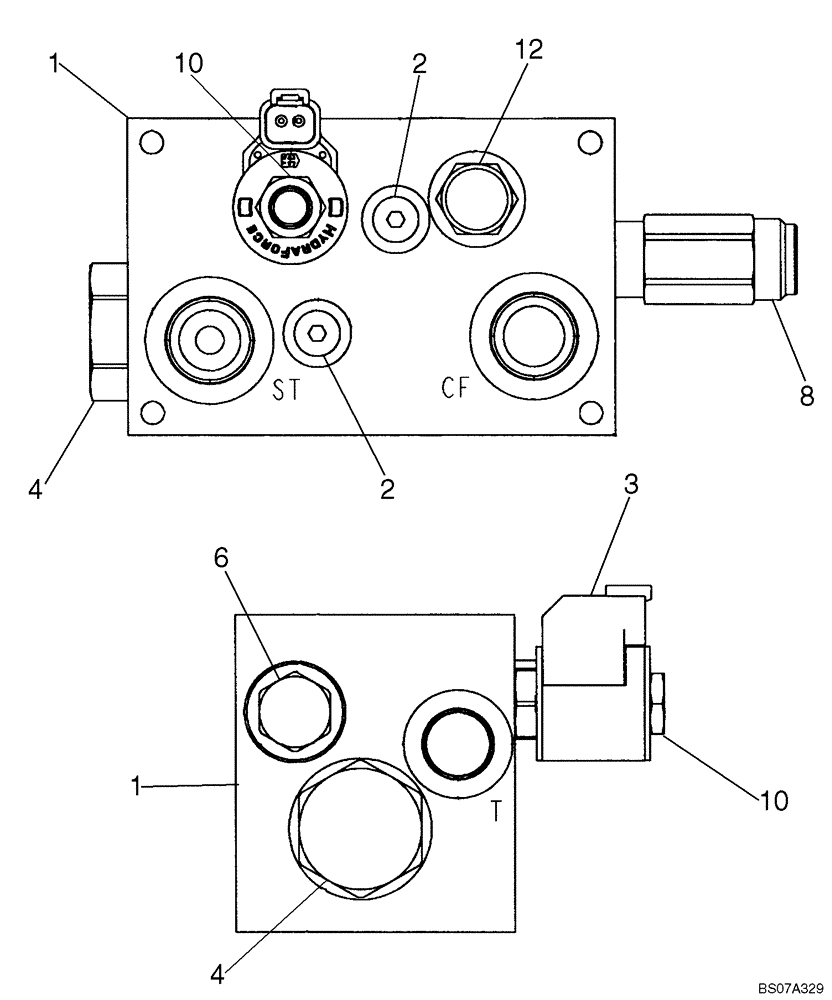

Запчасти Case 1021F (41.200.02[03]) - AUXILARY STEERING MANIFOLD (41) - STEERING

1

47792683

MANIFOLD

Auxiliary Steering; Incl. 2 - 13

1шт.

2

87365409

PLUG

Orifice

2шт.

3

87365413

COIL

Solenoid

1шт.

4

47540054

CHECK VALVE

Incl. 5

1шт.

5

47540055

SEAL KIT

Not Illustrated

1шт.

6

87365422

CHECK VALVE

Incl. 7

1шт.

7

1542831C1

SEAL KIT

1шт.

8

87365425

VALVE, PRESSURE RELI

EF Incl. 9

1шт.

9

87365424

SEAL KIT

1шт.

10

87365427

SPOOL

Incl. 11

1шт.

11

87365429

SEAL KIT

Not Illustrated

1шт.

12

87365430

ELEMENT

Logic; Incl. 13

1шт.

13

87365429

SEAL KIT

Not Illustrated

1шт.
