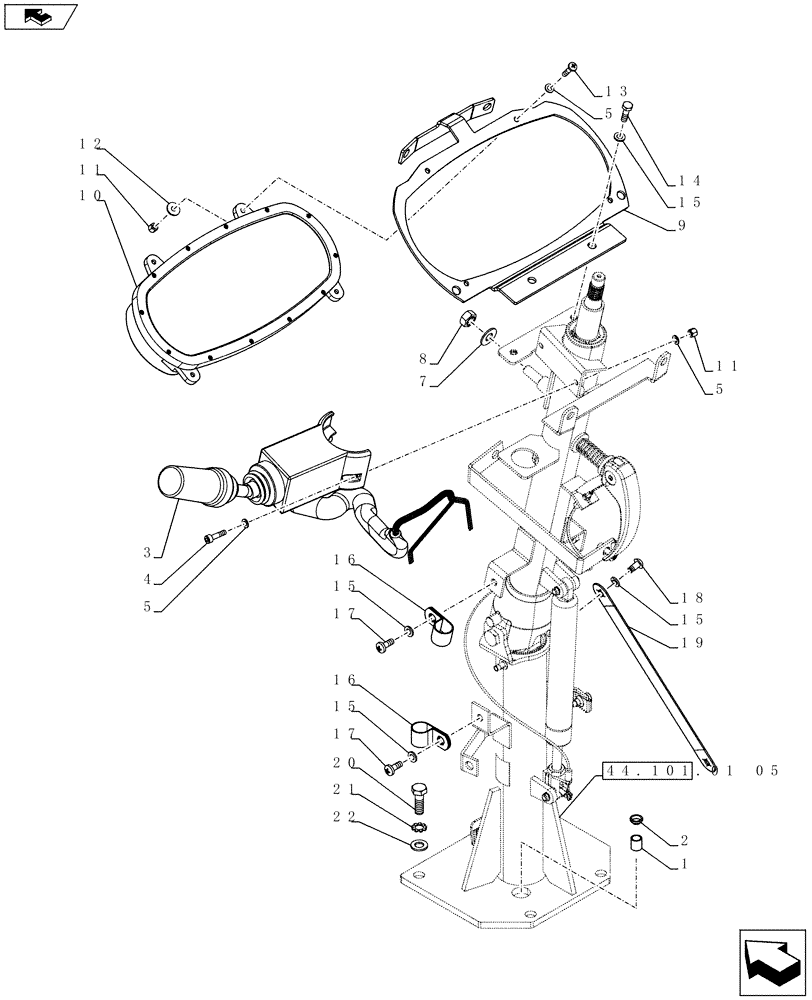

Запчасти Case 1021F (41.101.01[02]) - CAB STEERING COLUMN, ACCESSORY (41) - STEERING

1

76081690

SPACER,10.3mm ID x 15mm OD x 14.8mm L

4шт.

2

71476260

SPACER,14.5mm ID x 19.5mm OD x 7mm L

8шт.

3

238270A1

CONTROL

Shifter Lever

1шт.

4

864-5020

HEX SOC SCREW,M5 x 20mm, Cl 8.8

2шт.

5

895-11005

WASHER,5.5mm ID x 10mm OD x 1mm Thk

8шт.

6

87016585

NUT,Spring, M6 x 1

M6 Multi-Thread

4шт.

7

L127554

WASHER,0.395" ID x 0.875" OD x 0.064" Thk

Brass 10mm

1шт.

8

253347A1

NUT,Hex, M10 x 1.5

Brass

1шт.

9

76303295

BRACKET

AIC Mount

1шт.

10

84343051

INSTRUMENT CLUSTER

Instrument Cluster

1шт.

11

86639241

NUT,Prev Torque, M5 x 0.8, Cl 8

6шт.

12

895-25005

WASHER,M5 x 15 x 1.6

4шт.

13

840-1520

SCREW,Phillips Drive, Pan HD, M5 x 20mm, Cl 4.8

4шт.

14

614-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

2шт.

15

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

8шт.

16

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

4шт.

17

840-1616

SCREW,Pan, M6 x 16mm, Cl 4.8

4шт.

18

261-2478

SELF-TAP SCREW,1/4 -20x1/2 F Pan

2шт.

19

349372A1

GROUND CABLE

1шт.

20

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

4шт.

21

893-11010

LOCK WASHER,Ext Tooth, M10

4шт.

22

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.
