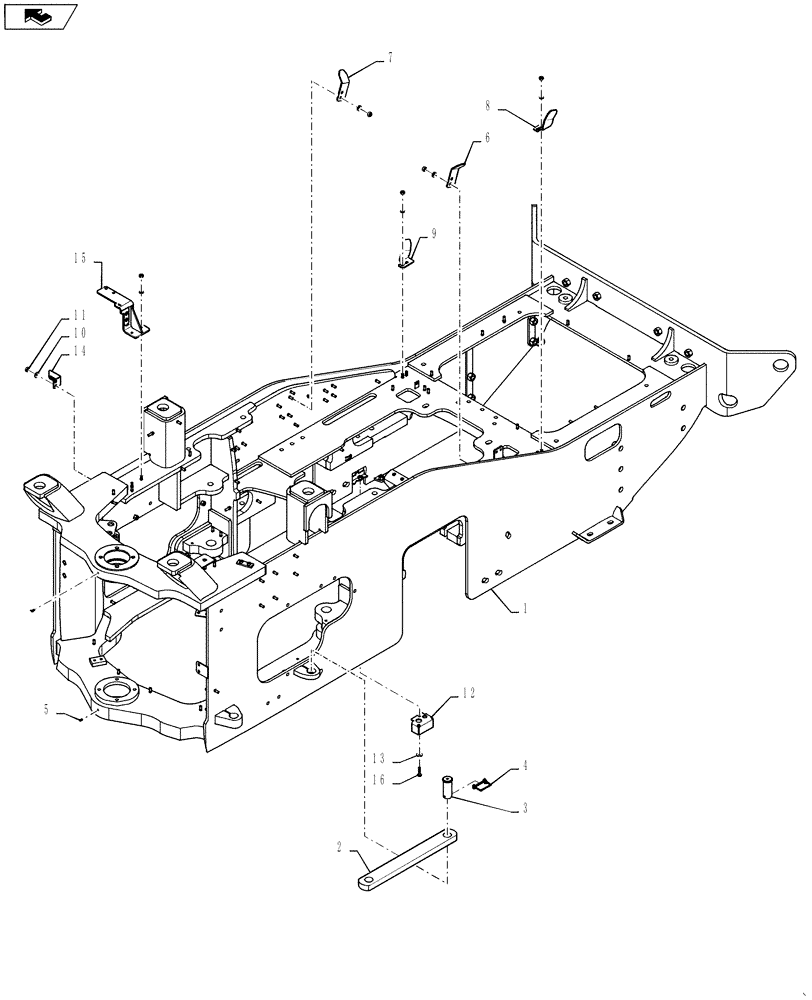

Запчасти Case 1021F (39.126.01) - REAR CHASSIS INSTALLATION (39) - FRAMES AND BALLASTING

1

84413811

FRAME

Rear

1шт.

2

84299325

PLATE

Articulation Lock

1шт.

3

353272A1

PIN

Articulation Lock

2шт.

4

L129282

LINCH PIN

2шт.

5

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

2шт.

6

84375466

BRACKET

Wheel Well Std Front LH

1шт.

7

84375468

BRACKET

Wheel Well Std Front RH

1шт.

8

84375469

BRACKET

Wheel Well Std Rear LH

1шт.

9

84375471

BRACKET

Wheel Well Std Rear RH

1шт.

10

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

10шт.

11

832-10410

NUT,M10 x 1.5, Cl 8

10шт.

12

84469515

BRACKET, SUPPORTING

Drain Line

1шт.

13

892-11008

LOCK WASHER,8mm ID

1шт.

14

84409470

BRACKET, SUPPORTING

1шт.

15

84409456

BRACKET, SUPPORTING

1шт.

16

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

1шт.
