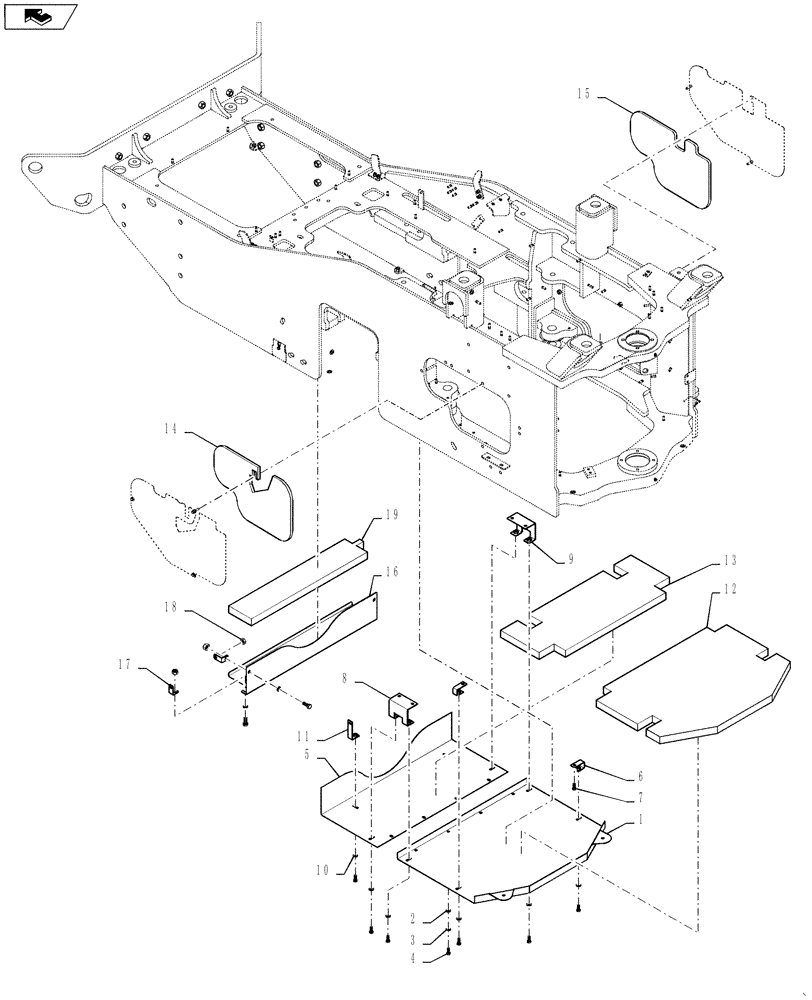

Запчасти Case 1021F (39.125.03) - SOUND PANEL NO AXLE COOLER (39) - FRAMES AND BALLASTING

1

84424028

COVER PLATE

Plate With Trans Bottom

1шт.

2

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

Washer 11x24x2 OMM CST

4шт.

3

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

Washer Spring Lock Reg 10mm

4шт.

4

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

Bolt

4шт.

5

84423549

COVER PLATE

plate With Middle Rear Bottom

1шт.

6

84423542

BRACKET

Bracket Sound Package CNH Black

2шт.

7

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

Bolt

20шт.

8

84423530

BRACKET

Bracket Sound

1шт.

9

84423530

BRACKET

Bracket Sound

1шт.

10

895-15012

WASHER,M12 x 28 x 2.5

Washer

14шт.

11

84423538

BRACKET

Bracket Sound

2шт.

12

84412038

FOAM INSULATION

Insulation Transmission

1шт.

13

84412039

FOAM INSULATION

Insulation Transmission

1шт.

14

84412044

FOAM INSULATION

Foam Right Hand Side

1шт.

15

84412041

FOAM INSULATION

Foam Left Hand Side

1шт.

16

84423552

COVER PLATE

Plate Middle Rear Bottom Case Power Tan

1шт.

17

84411986

BRACKET

Bracket Sound

4шт.

18

829-1410

NUT,M10 x 1.5, Cl 10.9

Nut

4шт.

19

84411990

FOAM INSULATION

Foam Insulation

1шт.
