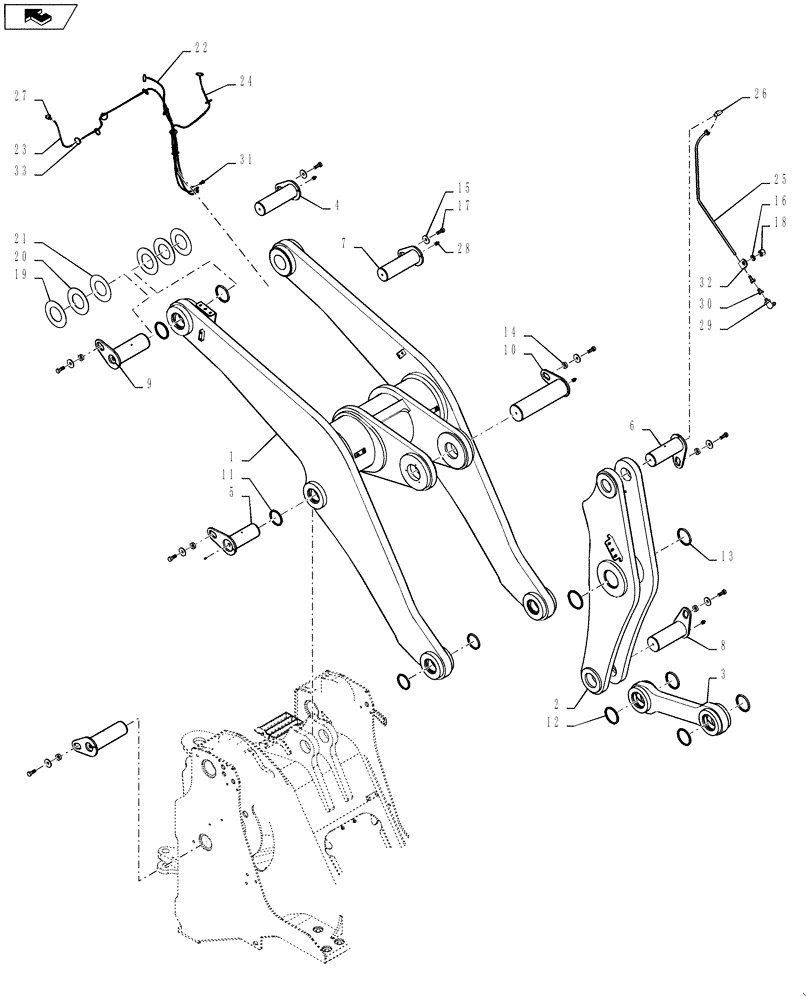

Запчасти Case 1021F (39.105.01) - LIFT ARM INSTALLATION- Z BAR AND XR/LR (39) - FRAMES AND BALLASTING

1

84415011

LIFT ARM

Z-Bar Only

1шт.

1

84419544

LIFT ARM

XR/LR Only

1шт.

2

84413852

BELLCRANK

1шт.

3

84413829

LINK

1шт.

4

84284304

PIN,101.6mm OD x 266mm L

266 mm

1шт.

5

84293834

PIN,101.6mm OD x 276mm L

276 mm

2шт.

6

84315431

PIN,101.6mm OD x 295mm L

295 mm

1шт.

7

84284302

PIN,101.6mm OD x 343mm L

343 mm

2шт.

8

84296692

PIN,114.3mm OD x 295mm L

295 mm

1шт.

9

84284299

PIN,114.3mm OD x 329mm L

329 mm

2шт.

10

84284297

PIN,127mm OD x 472mm L

472 mm

1шт.

11

S108245

WIPER SEAL

8шт.

12

84238525

SEALING RING

SEALRING

8шт.

13

84278876

RUBBER RING

2шт.

14

L127846

SPACER,22.2mm ID x 44.45mm OD x 14.3mm L

10шт.

15

87355604

WASHER

10шт.

16

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

1шт.

17

627-20050

BOLT,Hex, M20 x 2.5 x 50mm, Cl 10.9, Full Thd

10шт.

18

832-10410

NUT,M10 x 1.5, Cl 8

1шт.

19

84278980

SHIM

1шт.

20

84278979

SHIM

1шт.

21

84277334

SHIM

Grease

1шт.

22

84293478

FLEXIBLE HOSE,4.83mm ID x 1682mm L

Grease

1шт.

23

84293481

FLEXIBLE HOSE,4.83mm ID x 2294mm L

Grease

1шт.

24

318012A1

FLEXIBLE HOSE

Grease

1шт.

25

84293483

RIGID TUBE

1шт.

26

218-1066

ELBOW,90 Degree, 7/16"-20, 37 Degree x 1/8"-27, NPTF, LG

1шт.

27

328082A1

ELBOW

3шт.

28

219-1

LUBE NIPPLE,1/8" - 27 NPTF

6шт.

29

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

1шт.

30

218-461

HYD CONNECTOR,7/16" - 20 Male JIC x 1/8" - 27 Female NPTF

1шт.

31

F53473

LOCK NUT,1/8-27 NPSM

3шт.

32

515-25159

CLAMP,5/8", Insul, 1/2" Bolt

1шт.

33

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP

10шт.
