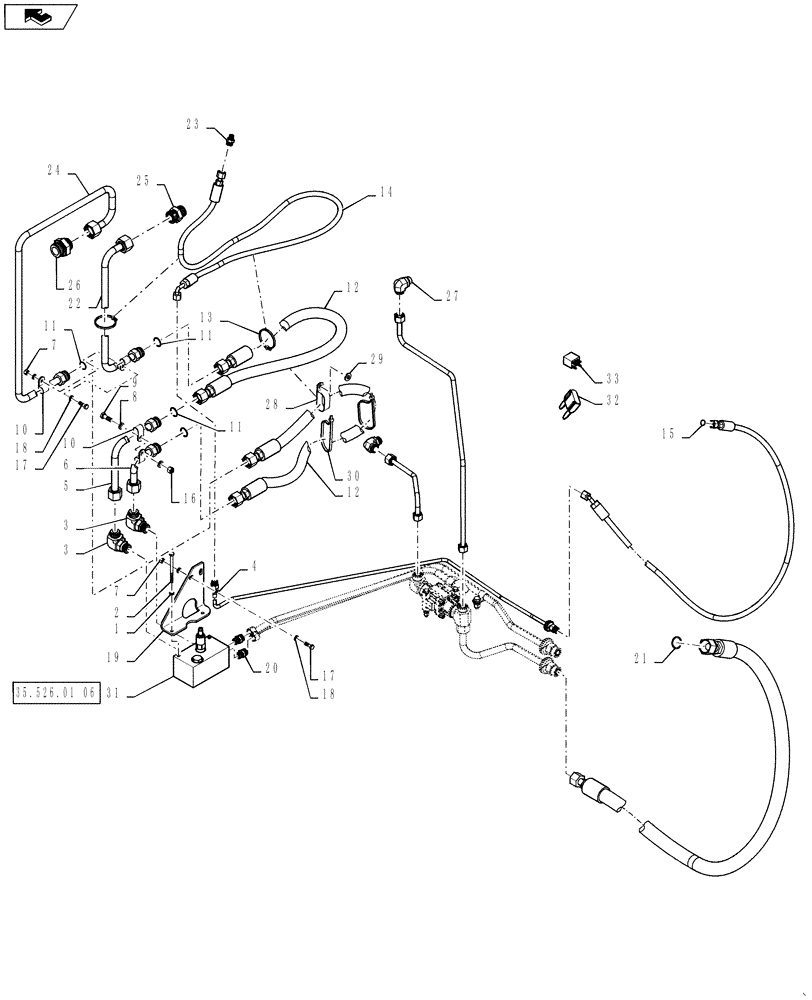

Запчасти Case 1021F (35.526.01[05]) - COOLING FAN RELIEF VALVE INSTALLATION-WITH REVERSING (35) - HYDRAULIC SYSTEMS

1

892-11008

LOCK WASHER,8mm ID

2шт.

2

16046231

SCREW,Hex, M8 x 1.25 x 150mm, Cl 10.9

2шт.

3

700-307

ELBOW,90 Degree Elbow, 1-3/16" - 12 Male ORFS x M27 x 2 Male ORB

2шт.

4

515-2195

CLAMP,3/8", Insul, 1/4" Bolt

1шт.

5

84373133

HYD TUBE

Fan Valve M2

1шт.

6

84373131

HYD TUBE

Fan Valve M1

1шт.

7

832-10408

NUT,M8 x 1.25, Cl 8.8

2шт.

8

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.

9

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

1шт.

10

515-24190

CLAMP,3/4", Insul, 7/16" Bolt

4шт.

11

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

4шт.

12

84373141

HOSE ASSY.

Fan Door

2шт.

13

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP

5шт.

14

84373144

HOSE ASSY.

Fan Drain

1шт.

15

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

16

832-10410

NUT,M10 x 1.5, Cl 8

1шт.

17

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

2шт.

18

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

19

84403806

BRACKET, SUPPORTING

1шт.

20

700-104

HYD CONNECTOR,1-3/16" - 12 Male ORFS x M27 x 2 Male ORB

2шт.

21

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

22

84373125

HYD TUBE

Fan Motor

1шт.

23

700-165

HYD CONNECTOR,11/16" - 16 Male ORFS x M12 x 1.5 Male ORB

1шт.

24

84373123

HYD TUBE

Fan Motor

1шт.

25

700-105

HYD CONNECTOR,1-7/16" - 12 Male ORFS x M33 x 2 Male ORB

1шт.

26

700-158

HYD CONNECTOR,1-7/16" - 12 Male ORFS x M42 x 2 Male ORB

1шт.

27

700-308

ELBOW,90 Degree Elbow, 1-7/16" - 12 Male ORFS x M33 x 2 Male ORB

2шт.

28

L111928

CLAMP

1шт.

29

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

1шт.

30

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP

3шт.

31

8500565

HYDRAULIC VALVE

Relief Valve, See Fig 35.752.06

1шт.

32

87350049

SWITCH

Fan Reversing

1шт.

33

87312626

RELAY,24V

5-Pin 280 Series

1шт.
