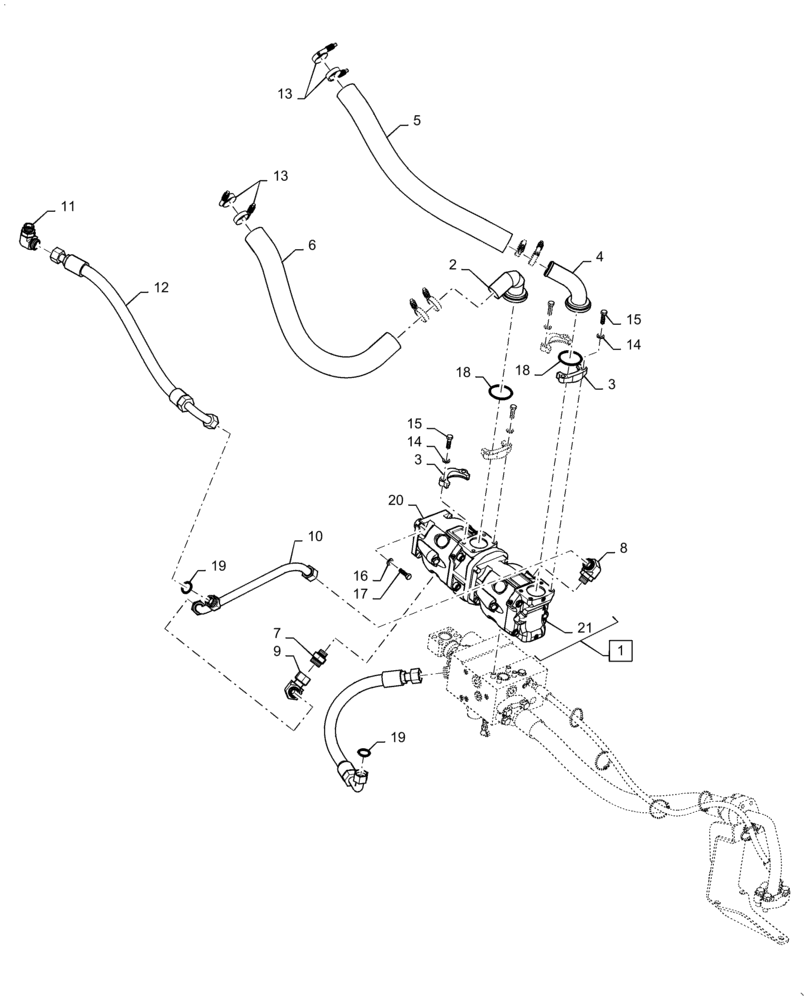

Запчасти Case 1021F (35.182.01) - PRIORITY HYDRAULIC ROUTING TANK TO PUMP (35) - HYDRAULIC SYSTEMS

1

84327049

HYDRAULIC PUMP,100 CC

1шт.

84327049R

REMAN-HYD PUMP

1021F WHEEL LOADER TIER 4 (NA) (4/10-)

1шт.

84327049C

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

84278046

HYD TUBE

1шт.

3

L14386

CLAMP

4шт.

4

87470879

HYD TUBE

1шт.

5

84305595

HOSE,50.8mm ID x 826.8mm L, SAE 100R4

1шт.

6

84305596

HOSE,50.8mm ID x 792.8mm L, SAE 100R4

1шт.

7

700-166

HYD CONNECTOR,1-7/16" - 12 Male ORFS x M27 x 2 Male ORB

1шт.

8

87010650

ELBOW,90 Degree, 1 7/16"-12 ORFS x M27 x 2 ORB

1шт.

9

701-339

ELBOW,90 Degree Elbow, 1-7/16" - 12 Male ORFS x 1-7/16" - 16 Female ORFS

1шт.

10

84361309

HYD TUBE

1шт.

11

700-308

ELBOW,90 Degree Elbow, 1-7/16" - 12 Male ORFS x M33 x 2 Male ORB

1шт.

12

84361310

HOSE ASSY.,25.4mm ID x 791.4mm L, SAE 100R1

1шт.

13

254026A1

HOSE CLAMP,44.45mm - 66.67mm

8шт.

14

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

8шт.

15

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

8шт.

16

896-11014

WASHER,15.5mm ID x 28mm OD x 3mm Thk

4шт.

17

627-14040

BOLT,Hex, M14 x 2 x 40mm, Cl 10.9, Full Thd

4шт.

18

238-5232

O-RING,0.139" Thk x 2.734" ID, -232, Cl 5, 75 Duro

2шт.

19

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

2шт.

20

84327082

HYDRAULIC PUMP,100 CC

Front

1шт.

20

87663508

SEAL KIT

1шт.

21

84327051

HYDRAULIC PUMP,85 CC

Rear

1шт.

21

87663508

SEAL KIT

1шт.
