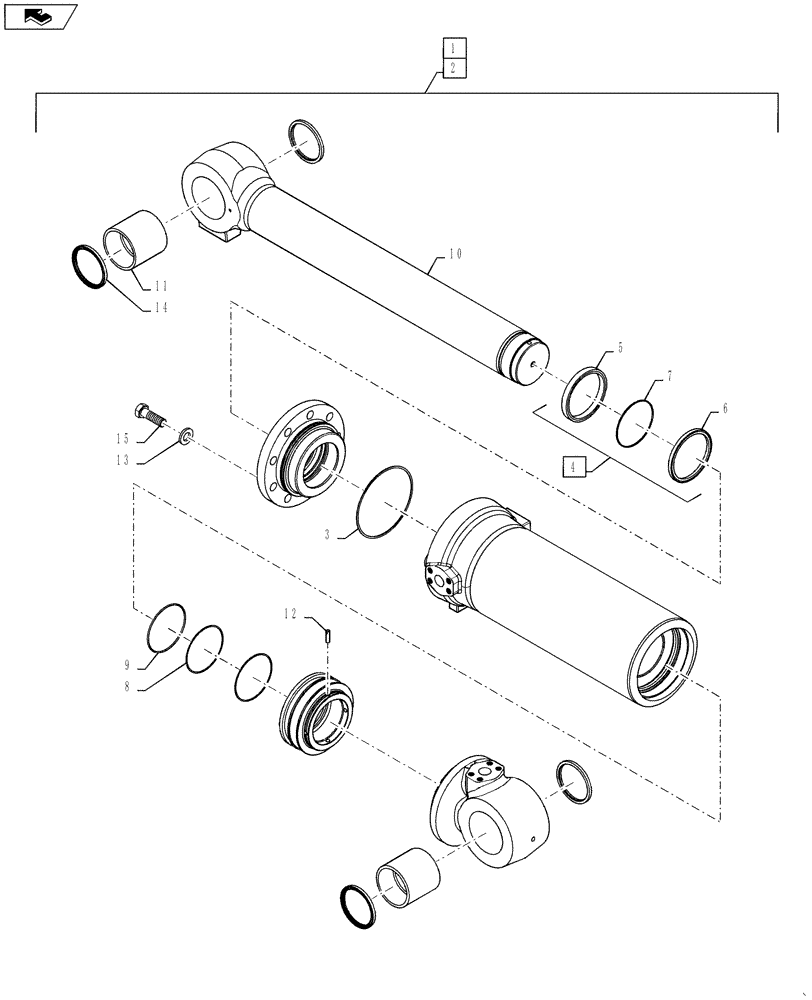

Запчасти Case 1021F (35.160.01[04]) - TILT CYLINDER ASSEMBLY, Z-BAR, XR (35) - HYDRAULIC SYSTEMS

1

84282974

HYDRAULIC CYLINDER,Double Acting, 127mm Rod, 581.9mm Stroke

Z-Bar For Seal Kit See 16

1шт.

84282974R

REMAN-HYD CYLINDER

1021F TIER 4 (NA) (4/10-)

1шт.

84282974C

CORE-HYD CYLINDER

Return Number

1шт.

2

84344678

HYDRAULIC CYLINDER,Double Acting, 127mm Rod, 581.9mm Stroke

XR

1шт.

84344678R

REMAN-HYD CYLINDER

1021F Tier 4 (4/10-)

1шт.

84344678C

CORE-HYD CYLINDER

Return Number

1шт.

3

238-5265

O-RING,0.139" Thk x 7.73" ID, -265, Cl 5, 75 Duro

1шт.

4

84285523

OIL SEAL

1шт.

5

84285524

RUBBER SEAL

1шт.

6

84285525

RUBBER SEAL

1шт.

7

84285526

BACK-UP RING

1шт.

8

G32105

RING,126.42mm ID x 132.52mm OD x 1.4mm Thk

2шт.

9

238-5250

O-RING,0.139" Thk x 4.984" ID, -250, Cl 5, 75 Duro

1шт.

10

84346246

PISTON ROD

XR Only

1шт.

10

84344083

PISTON ROD,127mm OD x 1207.46mm L

Z-Bar Only

1шт.

11

84291138

BUSHING,101.92mm ID x 117.58mm OD x 112mm L

1шт.

12

G106602

LOCK PIN

1шт.

13

87613298

WASHER,0.94" ID x 1.75" OD x 0.22" Thk

9шт.

14

S108245

WIPER SEAL

4шт.

15

87690481

BOLT,Hex, M22 x 70mm, Cl 10.9

9шт.

16

84282953

SERVICE KIT

1шт.
