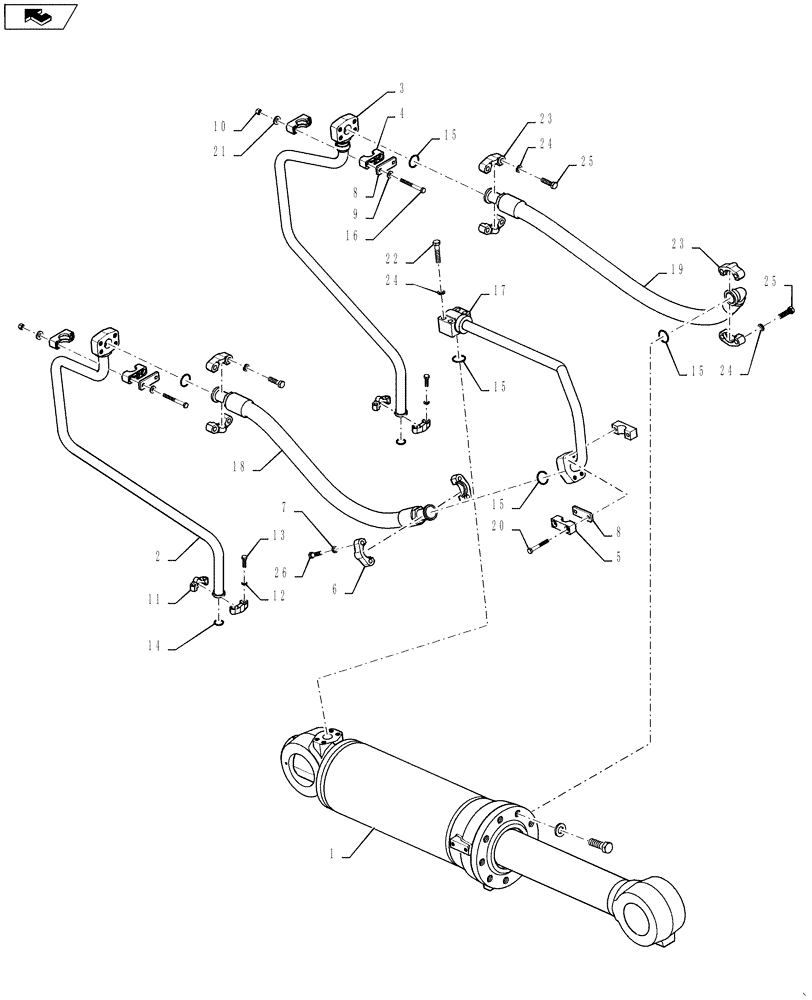

Запчасти Case 1021F (35.160.01[03]) - TILT CYLINDER INSTALLATION, Z-BAR, XR (35) - HYDRAULIC SYSTEMS

1

84282974

HYDRAULIC CYLINDER,Double Acting, 127mm Rod, 581.9mm Stroke

Z-Bar

1шт.

84282974R

REMAN-HYD CYLINDER

1021F TIER 4 (NA) (4/10-)

1шт.

84282974C

CORE-HYD CYLINDER

Return Number

1шт.

1

84344678

HYDRAULIC CYLINDER,Double Acting, 127mm Rod, 581.9mm Stroke

XR

1шт.

84344678R

REMAN-HYD CYLINDER

1021F Tier 4 (4/10-)

1шт.

84344678C

CORE-HYD CYLINDER

Return Number

1шт.

2

84426440

TUBE

1шт.

3

84426443

TUBE

1шт.

4

84240210

CLAMP,16mm ID

2шт.

5

87452747

CLAMP,33.4mm ID

1шт.

6

86980733

CLAMP

2шт.

7

892-11012

LOCK WASHER,M12

4шт.

8

8500858

PLATE

3шт.

9

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

4шт.

10

832-10410

NUT,M10 x 1.5, Cl 8

4шт.

11

86980731

CLAMP

4шт.

12

892-11010

LOCK WASHER,M10

8шт.

13

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

8шт.

14

238-6214

O-RING,0.139" Thk x 0.984" ID, -214, Cl 6, 90 Duro

2шт.

15

238-6222

O-RING,0.139" Thk x 1.484" ID, -222, Cl 6, 90 Duro

5шт.

16

827-10100

BOLT,Hex, M10 x 1.5 x 100mm, Cl 10.9

4шт.

17

84300245

HYD TUBE

1шт.

18

84300249

HYDRAULIC HOSE

1шт.

19

84300248

HYDRAULIC HOSE

1шт.

20

827-10080

BOLT,Hex, M10 x 1.5 x 80mm, Cl 10.9

2шт.

21

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

4шт.

22

827-14070

BOLT,Hex, M14 x 2 x 70mm, Cl 10.9

4шт.

23

87680118

CLAMP

6шт.

24

892-11014

LOCK WASHER,14.5mm ID x 24.1mm OD x 4.5mm Thk

12шт.

25

827-14050

BOLT,Hex, M14 x 2 x 50mm, Cl 10.9

12шт.

26

827-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

4шт.
