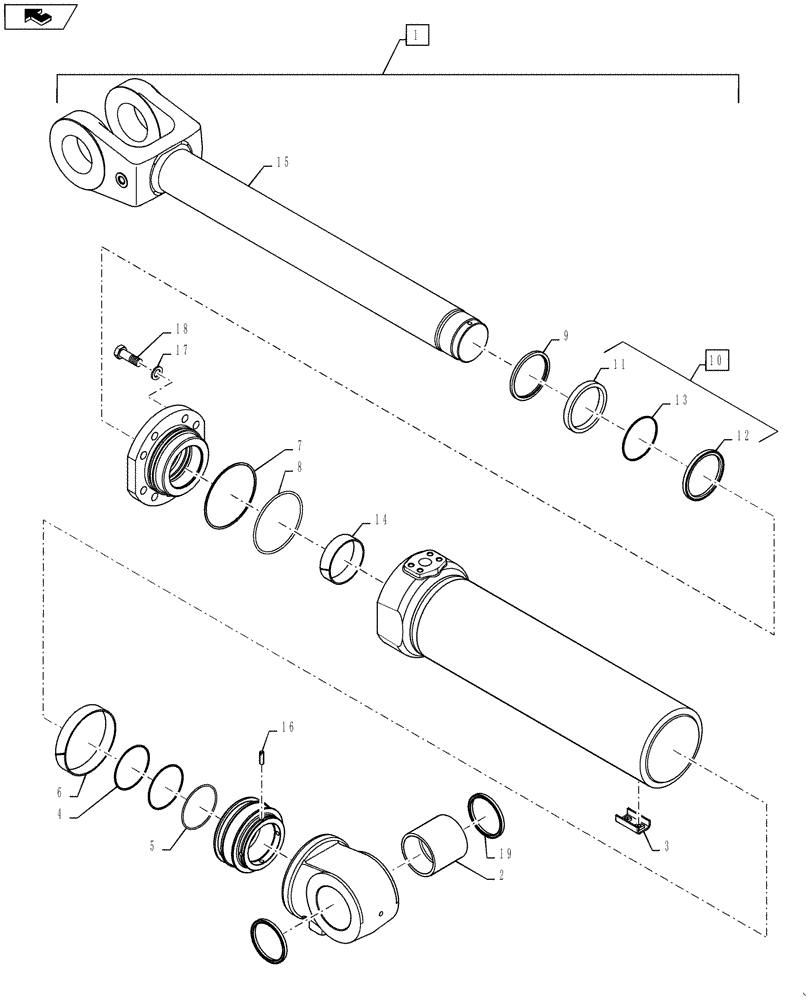

Запчасти Case 1021F (35.160.01[02]) - LIFT CYLINDER ASSEMBLY Z-BAR, XR (35) - HYDRAULIC SYSTEMS

1

84281864

HYDRAULIC CYLINDER,Double Acting, 114.3mm Rod, 780.6mm Stroke

Painted Power Tan

1шт.

1

84281864R

REMAN-HYD CYLINDER

1шт.

1

84281864C

CORE-HYD CYLINDER

Return Number

1шт.

1

84281863

HYDRAULIC CYLINDER,Double Acting, 114.3mm Rod, 780.6mm Stroke

Painted Gray

1шт.

1

84281863R

REMAN-HYD CYLINDER

1шт.

1

84281863C

CORE-HYD CYLINDER

Return Number

1шт.

1

47773169

KIT

Service Seal Kit

1шт.

2

84291138

BUSHING,101.92mm ID x 117.58mm OD x 112mm L

1шт.

3

84479003

BRACKET

1шт.

4

G32284

BACK-UP RING

2шт.

5

238-5246

O-RING,0.139" Thk x 4.484" ID, -246, Cl 5, 75 Duro

1шт.

6

84297271

WEAR RING

1шт.

7

G110679

RING,164.52mm ID x 173.66mm OD x 1.9mm Thk

1шт.

8

238-5362

O-RING,0.21" Thk x 6.225" ID, -362, Cl 5, 75 Duro

1шт.

9

84238525

SEALING RING

SEALRING

1шт.

10

84285515

OIL SEAL

1шт.

11

84285516

RUBBER SEAL

1шт.

12

84285517

RUBBER SEAL

1шт.

13

84285518

BACK-UP RING

1шт.

14

84285520

WEAR RING

1шт.

15

84281846

PISTON ROD

1шт.

16

G106602

LOCK PIN

1шт.

17

G32317

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

9шт.

18

9843495

BOLT,Hex, M20 x 2.5 x 60mm, Cl 10.9

9шт.

19

S108245

WIPER SEAL

2шт.
