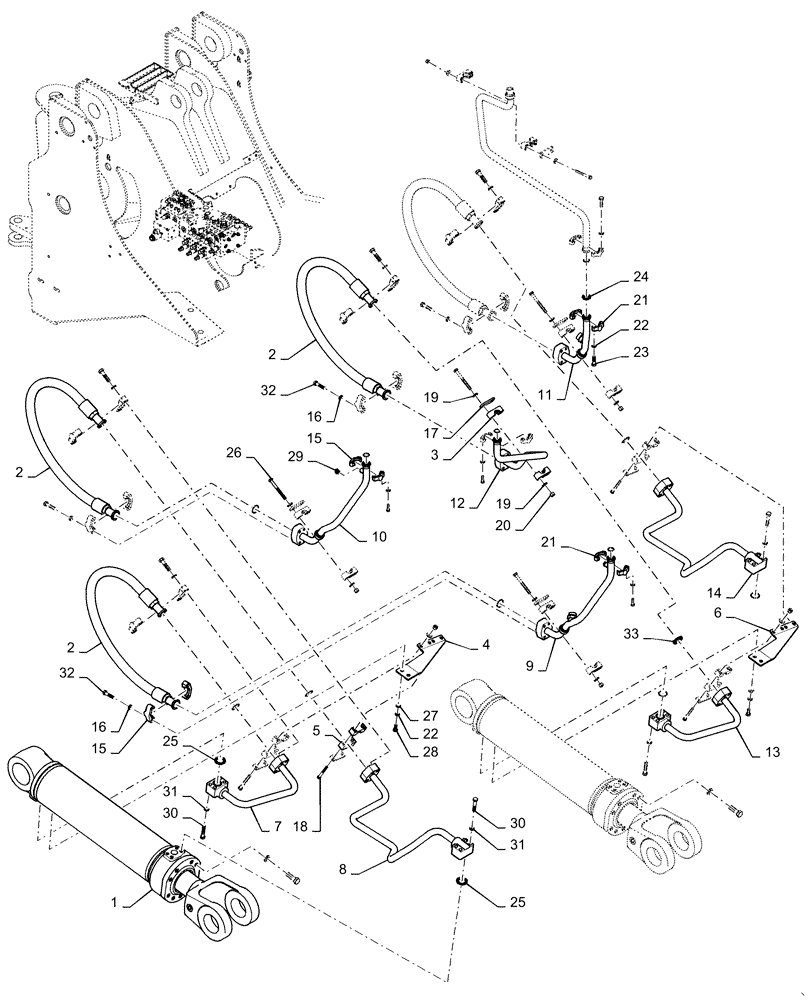

Запчасти Case 1021F (35.160.01[01]) - LIFT CYLINDER INSTALLATION Z-BAR, XR (35) - HYDRAULIC SYSTEMS

1

84281864

HYDRAULIC CYLINDER,Double Acting, 114.3mm Rod, 780.6mm Stroke

2шт.

84281864R

REMAN-HYD CYLINDER

1021F TIER 4 (4/10-)

2шт.

84281864C

CORE-HYD CYLINDER

Return Number

1шт.

2

84271140

HYDRAULIC HOSE

For O-Ring see 33

4шт.

3

84240210

CLAMP,16mm ID

4шт.

4

84352260

BRACKET

1шт.

5

87452747

CLAMP,33.4mm ID

4шт.

6

84352258

BRACKET

1шт.

7

84271119

HYD TUBE

1шт.

8

84372368

TUBE

1шт.

9

84425199

TUBE

1шт.

10

84426445

TUBE

1шт.

11

84425195

TUBE

1шт.

12

84426447

TUBE

1шт.

13

84295306

HYD TUBE

1шт.

14

84372370

TUBE

1шт.

15

86980733

CLAMP

16шт.

16

892-11012

LOCK WASHER,M12

32шт.

17

8500858

PLATE

8шт.

18

827-10090

BOLT,Hex, M10 x 1.5 x 90mm, Cl 10.9

8шт.

19

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

16шт.

20

832-10410

NUT,M10 x 1.5, Cl 8

16шт.

21

86980731

CLAMP

8шт.

22

892-11010

LOCK WASHER,M10

20шт.

23

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

16шт.

24

238-6214

O-RING,0.139" Thk x 0.984" ID, -214, Cl 6, 90 Duro

4шт.

25

238-6222

O-RING,0.139" Thk x 1.484" ID, -222, Cl 6, 90 Duro

12шт.

26

827-10100

BOLT,Hex, M10 x 1.5 x 100mm, Cl 10.9

8шт.

27

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

28

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

4шт.

29

220064A1

PLUG,M14 x 1.5, ORB

1шт.

30

827-14070

BOLT,Hex, M14 x 2 x 70mm, Cl 10.9

16шт.

31

892-11014

LOCK WASHER,14.5mm ID x 24.1mm OD x 4.5mm Thk

16шт.

32

827-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

32шт.

33

235757

O-RING,0.139" Thk x 1.484" ID, -222, Cl 6, 90 Duro

1шт.
