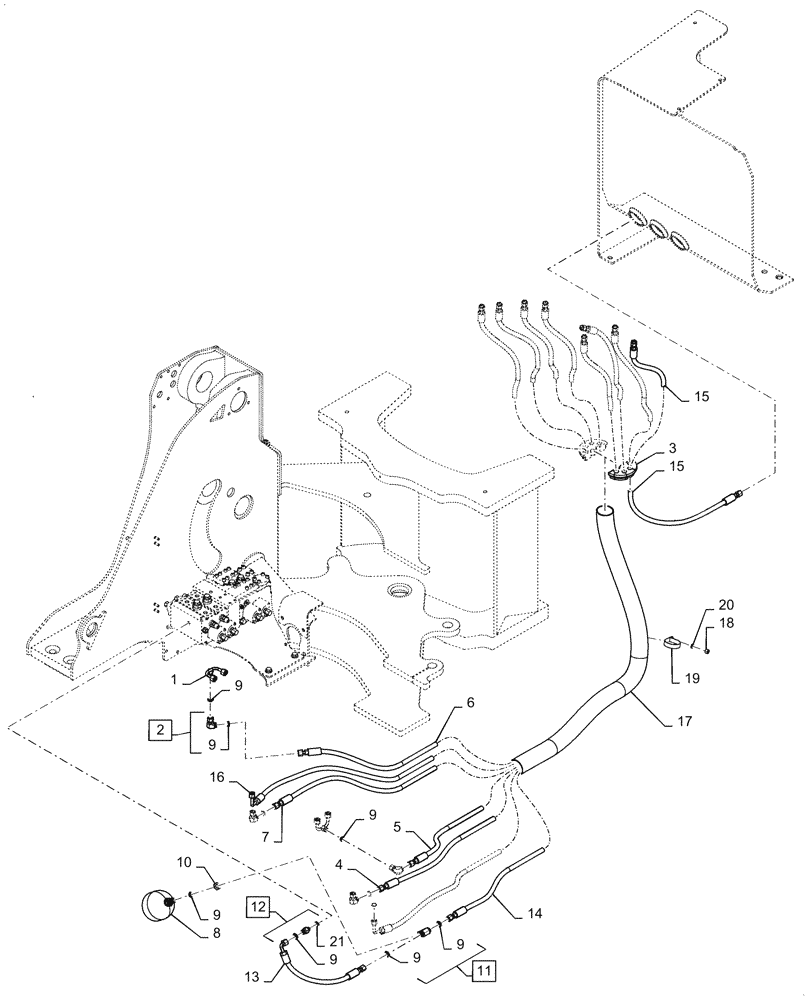

Запчасти Case 1021F (35.140.02) - LINE INSTALLATION, LOADER CONTROLS, 3 FUNCTION VALVE (35) - HYDRAULIC SYSTEMS

1

84377777

HYD TUBE

Valve

2шт.

2

84989392

ELBOW,90 Degree, 11/16"-16 ORFS x 11/16"-16 Fem Sw

Incl 9

4шт.

3

84385656

GROMMET

Hose Mounting

2шт.

4

84377743

HOSE ASSY.

Pilot Dump

1шт.

5

84377742

HOSE ASSY.,9.53mm ID x 2915mm L, SAE 100R1

Pilot Lower

1шт.

6

84377741

HOSE ASSY.

Pilot Raise

1шт.

7

84377740

HOSE ASSY.,9.53mm ID x 3140mm L, SAE 100R1

Pilot Rollback

1шт.

8

8501047

ACCUMULATOR

Pilot Supply

1шт.

9

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

16шт.

10

87010704

BHD LOCK NUT,11/16"-16

1шт.

11

86591334

TEE,11/16"-16 ORFS x 11/16"-16 Fem

Incl 9

1шт.

12

391859A1

VALVE, CHECK

Incl 9, 21

1шт.

13

84377738

HOSE ASSY.

Pilot Accumulator

1шт.

14

84377735

HOSE ASSY.

Pilot Pressure

1шт.

15

84377737

HOSE ASSY.,9.53mm ID x 1490mm L, SAE 100R1

Pilot Tank

1шт.

16

84377736

HOSE ASSY.

Third Spool Pilot

2шт.

17

87348231

SLEEVE

1шт.

18

832-10410

NUT,M10 x 1.5, Cl 8

1шт.

19

87302918

CLAMP,69.8mm, Coat, 13.5mm Bolt Hole, P Type

1шт.

20

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

1шт.

21

86598099

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

2шт.
