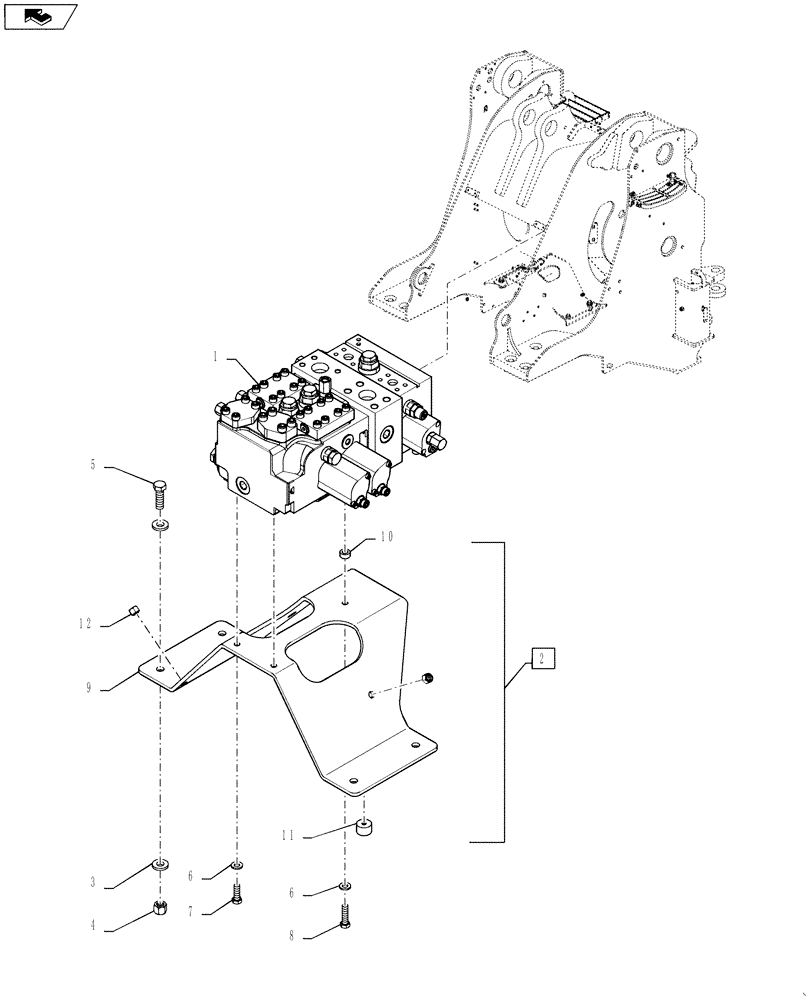

Запчасти Case 1021F (35.135.01) - VALVE INSTALLATION - 2 FUNCTION / 3 SPOOLS (35) - HYDRAULIC SYSTEMS

1

84345028

VALVE

2 Functions

1шт.

2

84468976

PLATE

Loader Valve

1шт.

3

896-16016

WASHER,17.5mm ID x 34mm OD x 5mm Thk

8шт.

4

832-10416

NUT,M16 x 2, Cl 8

4шт.

5

627-16050

BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd

4шт.

6

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

3шт.

7

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

2шт.

8

827-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 10.9, Full Thd

1шт.

9

NSS

NOT SOLD SEPARAT

Plate, Loader Valve

1шт.

10

NSS

NOT SOLD SEPARAT

Spacer

1шт.

11

NSS

NOT SOLD SEPARAT

Nut, Special

1шт.

12

NSS

NOT SOLD SEPARAT

2шт.
