(35.128.04) - VALVE ASSEMBLY - JOYSTICK CONTROL INSTALLATION - 3 FUNCTION JOYSTICK, 1 LEVER

Запчасти Case 1021F (35.128.04) - VALVE ASSEMBLY - JOYSTICK CONTROL INSTALLATION - 3 FUNCTION JOYSTICK, 1 LEVER (35) - HYDRAULIC SYSTEMS

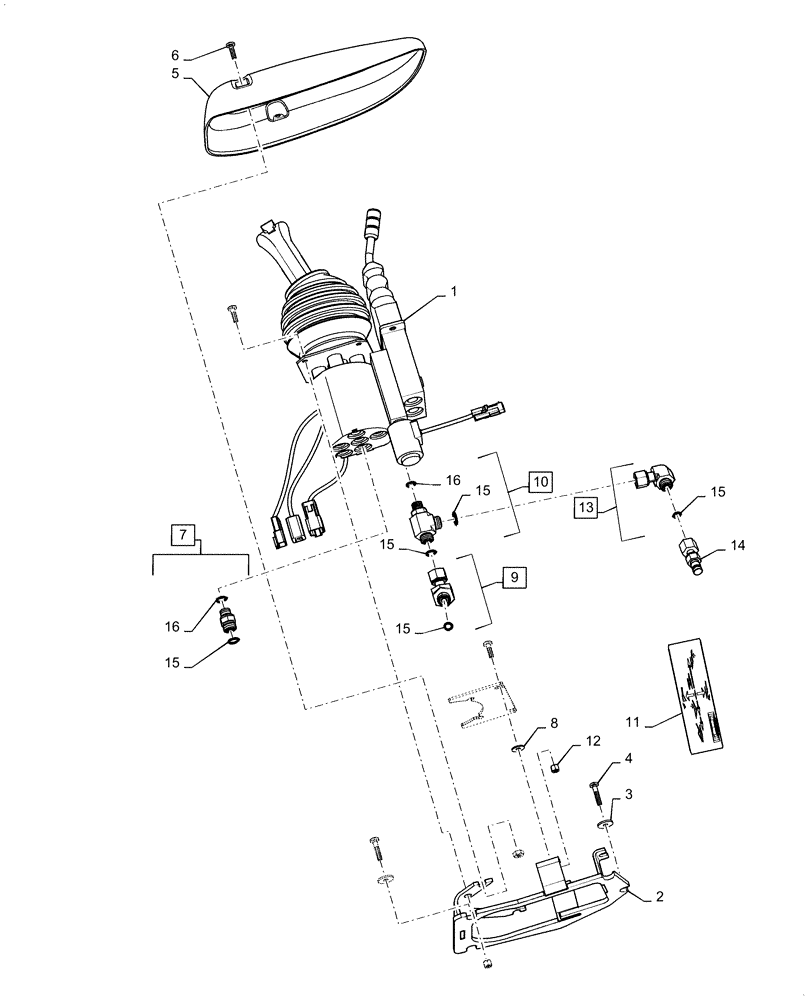

Схема запчастей Case 1021F - (35.128.04) - VALVE ASSEMBLY - JOYSTICK CONTROL INSTALLATION - 3 FUNCTION JOYSTICK, 1 LEVER (35) - HYDRAULIC SYSTEMS
15
6
16
2
15
10
16
15
15
4
9
12
7
3
8
15
11
14
1
13
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87537725

CONTROL

Joystick and 1 Lever

1шт.

2

87516506

ADAPTER

1шт.

3

895-25006

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

2шт.

4

840-1630

SCREW,Pan, M6 x 30mm, Cl 4.8

4шт.

5

87638911

BEZEL

1шт.

6

47372445

SCREW,Pozidrive, Pan HD, M6 x 20mm, Cl 5.8

7шт.

7

86579671

HYD CONNECTOR,11/16" - 16 ORFS x M14 x 1.5 ORB

Incl 15 - 16

7шт.

8

140040

WASHER,6.6mm ID x 22mm OD x 2mm Thk

4шт.

9

87354477

ELBOW,45 Degree, 11/16"-16 x 11/16"-16 Fem Sw

Incl 15

1шт.

10

700-406

TEE,11/16" - 16 Male ORFS x 11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

Incl 15 - 16

1шт.

11

87536095

DECAL

1шт.

12

832-10406

NUT,M6 x 1, Cl 8

2шт.

13

84989392

ELBOW,90 Degree, 11/16"-16 ORFS x 11/16"-16 Fem Sw

Incl 15

1шт.

14

190119A1

COUPLING

Order 15

1шт.

15

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

24шт.

16

86598099

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

2шт.
