(33.204.01) - VAR -424235, 424775 - BRAKES, HUB DISC, FRONT AND REAR AXLE

Запчасти Case 1021F (33.204.01) - VAR -424235, 424775 - BRAKES, HUB DISC, FRONT AND REAR AXLE (33) - BRAKES & CONTROLS

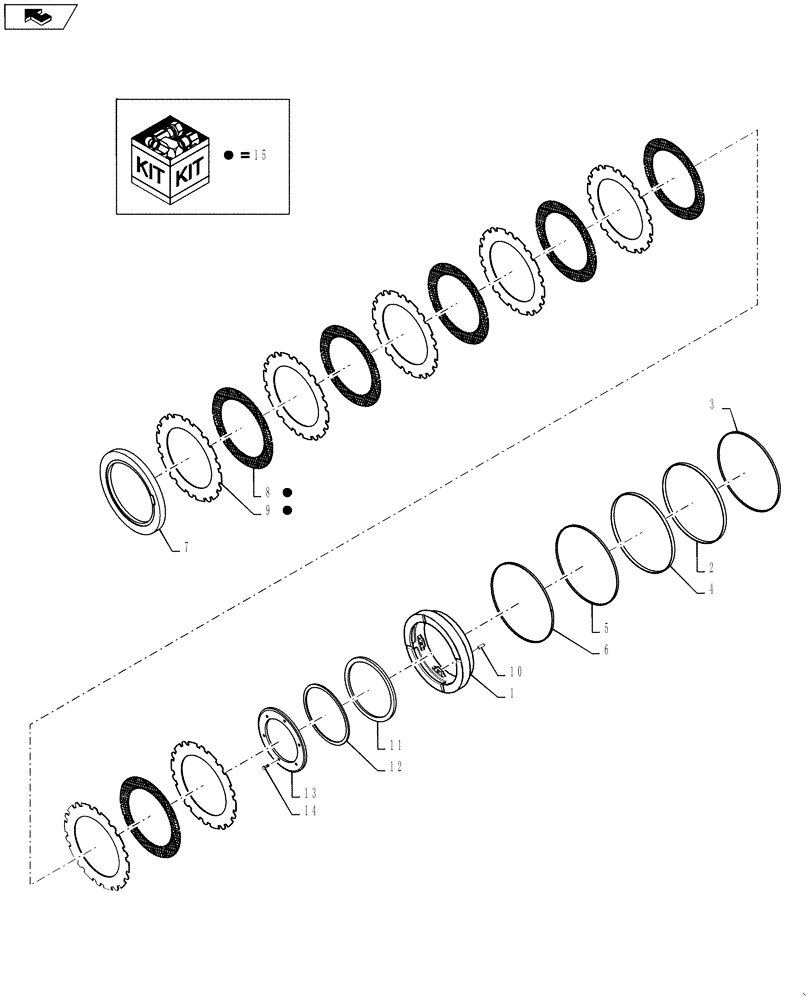

Схема запчастей Case 1021F - (33.204.01) - VAR -424235, 424775 - BRAKES, HUB DISC, FRONT AND REAR AXLE (33) - BRAKES & CONTROLS
6
14
15
home
4
15
15
9
11
3
2
10
15
8
1
12
5
13
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84329420

PISTON

Brake

1шт.

2

8605314

SEAL,298mm ID x 310mm OD x 8mm Thk

Brake Piston U-Ring

1шт.

3

8603577

RING

Piston Seal Support

1шт.

4

8605315

SEAL

Brake Piston U-Ring

1шт.

5

8603579

RING

Piston Seal Support

1шт.

6

8603580

SNAP RING

Brake Piston Guide

1шт.

7

84355094

SHIM

End

1шт.

8

Available in Kit Only, See 15

12шт.

9

Available in Kit Only, See 15

14шт.

10

87743218

PIN

Slot

6шт.

11

84329424

CUP WASHER

1шт.

12

84329425

SPRING CUP

1шт.

13

84329427

PROTECTIVE COVER

1шт.

14

87743747

SCREW,Hex

6шт.

15

84573624

SERVICE KIT

Brake Service Kit, One Kit Per Axle, For Open Differential Front and Rear Axles

1шт.

15

84574221

SERVICE KIT

Brake Service Kit, One Kit Per Axle, For Front Differential Locking Axles

1шт.
