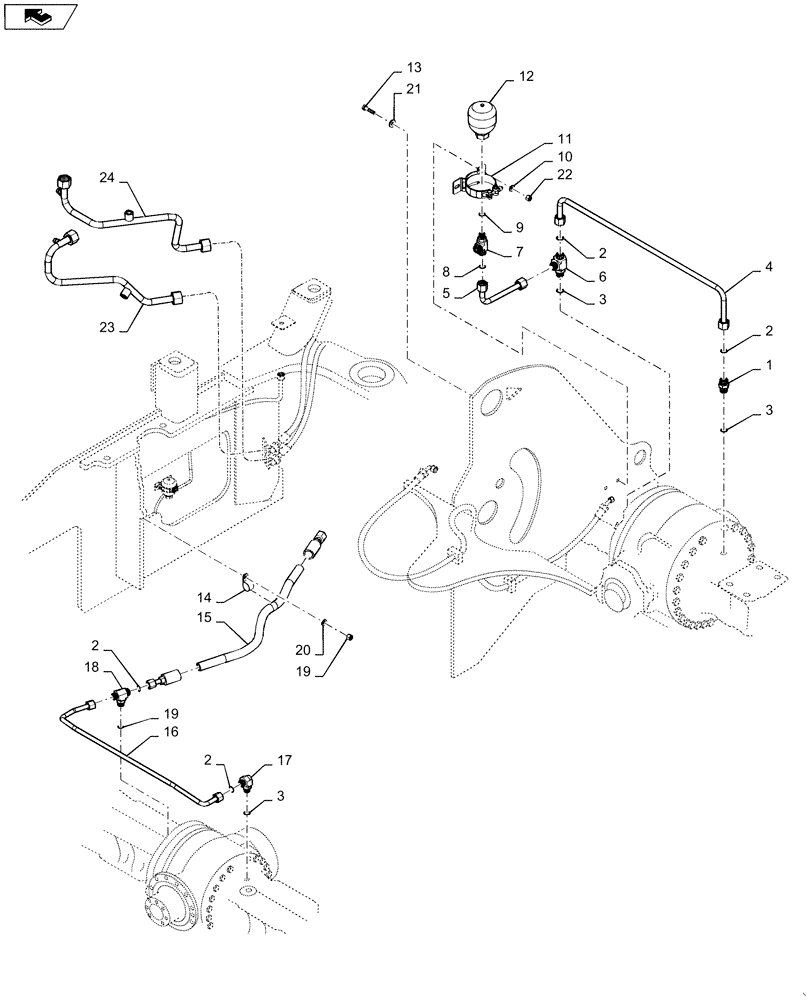

Запчасти Case 1021F (33.202.05[02]) - BRAKE ACCUMULATOR HD (33) - BRAKES & CONTROLS

1

700-102

HYD CONNECTOR,13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

1шт.

2

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

4шт.

3

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

4шт.

4

84306483

HYD TUBE

Front Axle Brake HD

1шт.

5

84306523

TUBE

Brake Supply Front HD

1шт.

6

700-412

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

1шт.

7

84218880

RUN TEE,13/16" - 16 ORFS x 13/16" - 16 ORFS x 9/16" - 18 ORB

1шт.

8

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

9

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

10

896-11008

WASHER,9mm ID x 17mm OD x 2mm Thk

2шт.

11

84272713

CLAMP,73mm - 79mm

Accumulator

1шт.

12

84393492

ACCUMULATOR

Brake Damping

1шт.

13

827-8035

BOLT,Hex, M8 x 1.25 x 35mm, Cl 10.9

2шт.

14

515-23270

CLAMP,1 1/16", Insul, 3/8" Bolt

1шт.

15

84306472

HOSE,15.88mm ID x 770mm L, SAE 100R17

Rear Brake Supply

1шт.

16

84306474

TUBE

Rear Axle Brake

1шт.

17

700-305

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

1шт.

18

700-402

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

1шт.

19

832-10410

NUT,M10 x 1.5, Cl 8

1шт.

20

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

1шт.

21

896-15008

WASHER,9mm ID x 21mm OD x 2.5mm Thk

2шт.

22

832-10408

NUT,M8 x 1.25, Cl 8.8

2шт.

23

84379354

HYD TUBE

Accumulator Front HD

1шт.

24

84305576

TUBE

Accumulator Rear HD

1шт.
