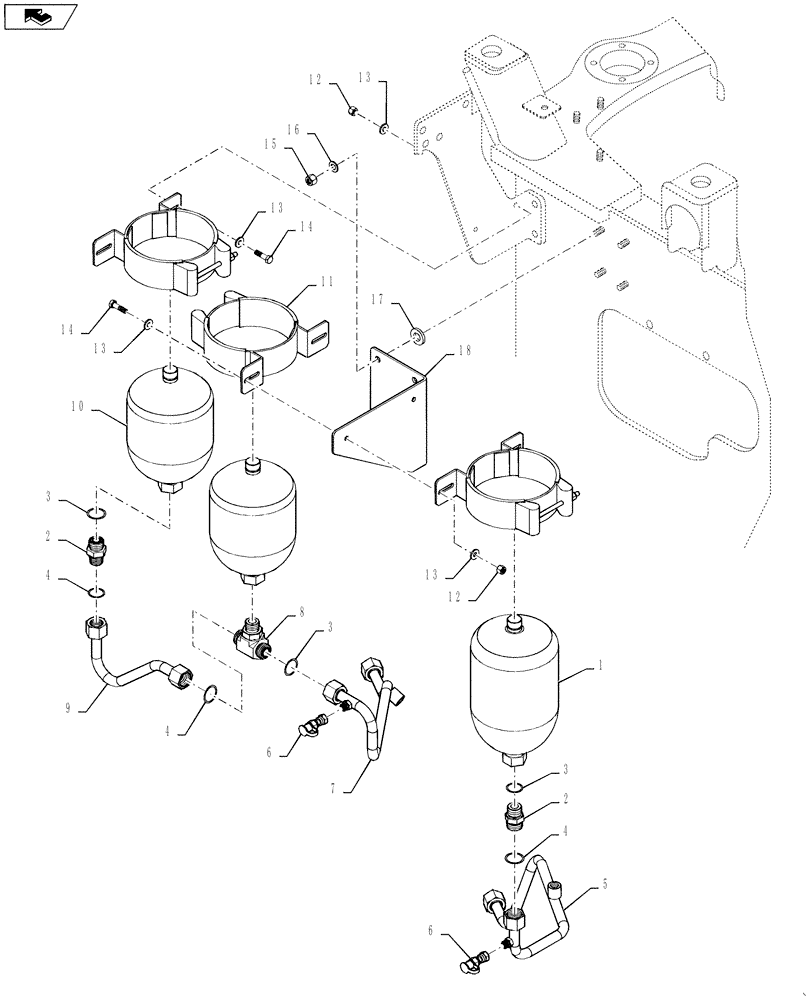

Запчасти Case 1021F (33.202.05[01]) - BRAKE ACCUMULATOR HD (33) - BRAKES & CONTROLS

1

87728740

ACCUMULATOR

Service Brake

1шт.

2

700-104

HYD CONNECTOR,1-3/16" - 12 Male ORFS x M27 x 2 Male ORB

2шт.

3

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

3шт.

4

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

3шт.

5

84305576

TUBE

Accumulator Rear

1шт.

6

190117A1

COUPLING

Diagnostic

2шт.

7

84379354

HYD TUBE

Accumulator Front HD

1шт.

8

700-424

TEE,1-3/16" - 12 Male ORFS x 1-3/16" - 12 Male ORFS x M27 x 2 Male ORB

1шт.

9

84305609

HYD TUBE

Accumulator Front HD

1шт.

10

87728740

ACCUMULATOR

Service Brake

2шт.

11

8501315

CLAMP,167mm - 175mm

Accumulator

3шт.

12

832-10408

NUT,M8 x 1.25, Cl 8.8

4шт.

13

896-15008

WASHER,9mm ID x 21mm OD x 2.5mm Thk

8шт.

14

627-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

4шт.

15

832-10410

NUT,M10 x 1.5, Cl 8

4шт.

16

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

17

896-16016

WASHER,17.5mm ID x 34mm OD x 5mm Thk

4шт.

18

84305573

MOUNTING PLATE

1шт.
