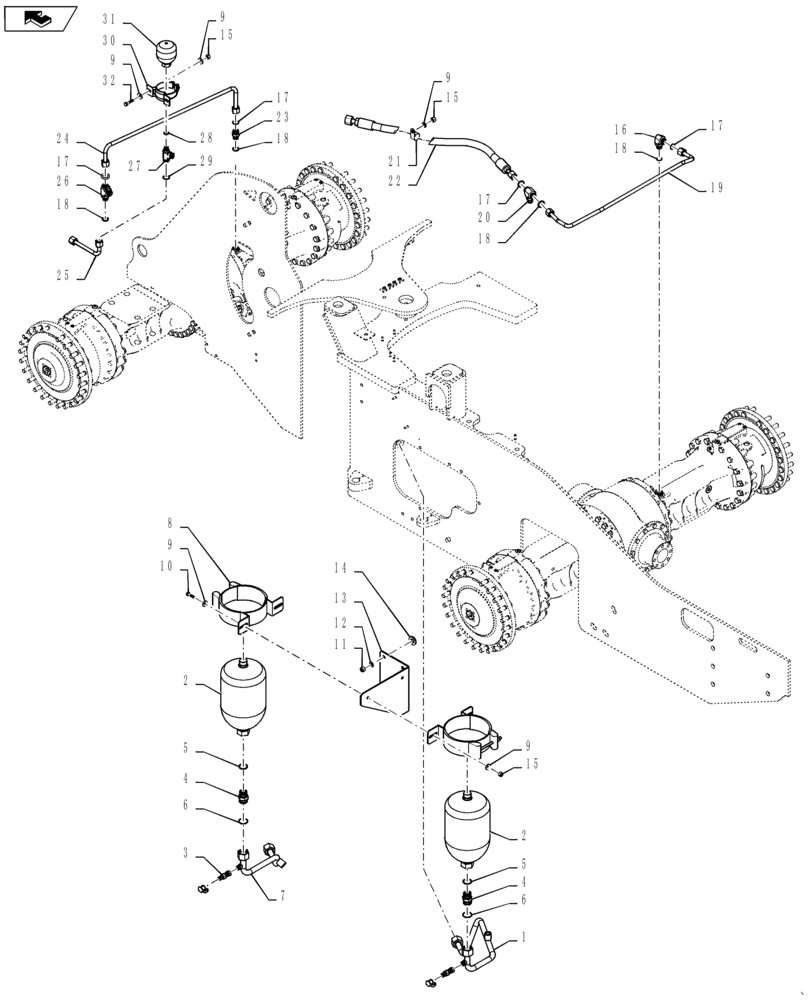

Запчасти Case 1021F (33.202.04) - BRAKE ACCUMULATOR STANDARD (33) - BRAKES & CONTROLS
№
Артикул
Название
Примечание
Количество
1
84305576
TUBE
Accumulator Rear
1шт.
2
87728740
ACCUMULATOR
Service Brake
2шт.
3
190117A1
COUPLING
Diagnostic
2шт.
4
700-104
HYD CONNECTOR,1-3/16" - 12 Male ORFS x M27 x 2 Male ORB
Also Order 5,6
2шт.
5
238-6018
O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro
2шт.
6
637-63173
O-RING,2.2mm Thk x 17.3mm ID, Cl 6, 75 Duro
2шт.
7
47359729
RIGID TUBE
Acculmator Front
1шт.
8
8501315
CLAMP,167mm - 175mm
2шт.
9
896-15008
WASHER,9mm ID x 21mm OD x 2.5mm Thk
8шт.
10
627-8030
BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd
2шт.
11
832-10410
NUT,M10 x 1.5, Cl 8
5шт.
12
895-11010
WASHER,11mm ID x 20mm OD x 2mm Thk
5шт.
13
84305573
MOUNTING PLATE
1шт.
14
896-16016
WASHER,17.5mm ID x 34mm OD x 5mm Thk
4шт.
15
832-10408
NUT,M8 x 1.25, Cl 8.8
4шт.
16
700-305
ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x M18 x 1.5 Male ORB
Incl. Ref. 17, 18
1шт.
17
637-63153
O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro
2шт.
18
238-6014
O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro
2шт.
19
84306474
TUBE
Rear Axle Brake
1шт.
20
700-412
TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x M18 x 1.5 Male ORB
1шт.
21
84218880
RUN TEE,13/16" - 16 ORFS x 13/16" - 16 ORFS x 9/16" - 18 ORB
1шт.
22
84306472
HOSE,15.88mm ID x 770mm L, SAE 100R17
Rear Brake Supply
1шт.
23
700-102
HYD CONNECTOR,13/16" - 16 Male ORFS x M18 x 1.5 Male ORB
Incl Ref 17, 18
1шт.
24
84306479
TUBE
Front Axle Brake
1шт.
25
84306523
TUBE
Brake Supply Front
1шт.
26
700-412
TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x M18 x 1.5 Male ORB
1шт.
27
84218880
RUN TEE,13/16" - 16 ORFS x 13/16" - 16 ORFS x 9/16" - 18 ORB
1шт.
28
238-6014
O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro
1шт.
29
238-6011
O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro
1шт.
30
84272713
CLAMP,73mm - 79mm
1шт.
31
84393492
ACCUMULATOR
1шт.
32
827-8035
BOLT,Hex, M8 x 1.25 x 35mm, Cl 10.9
2шт.
Выбрано товаров: 32
