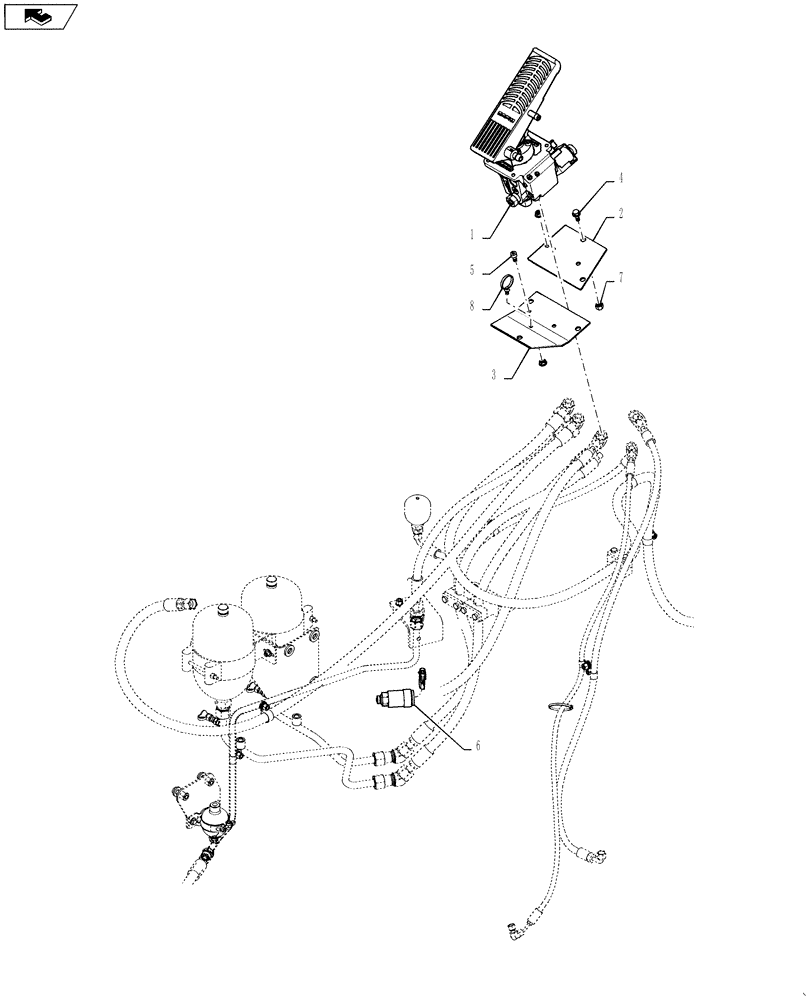

Запчасти Case 1021F (33.202.03) - BRAKE VALVE INSTALLATION (33) - BRAKES & CONTROLS

1

84398143

BRAKE VALVE

See Figure 33.202.03(01)

1шт.

2

84375538

MOUNTING PLATE

Forward Closeout

1шт.

3

84315506

MOUNTING PLATE

Rear Closeout

1шт.

4

844-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

4шт.

5

864-8016

HEX SOC SCREW,M8 x 16mm, Cl 8.8

4шт.

6

84385610

PRESSURE SWITCH

Declutch

1шт.

7

825-5148

SERRATED NUT,M8, Flg Ser

2шт.

8

87668737

CABLE TIE,203.2mm L, Nylon, Black

Fir Tree Assembly

1шт.
